Selecting Materials for Slewing Bearings: 42CrMo vs. 50Mn

1. Core Differences at a Glance: 42CrMo Wins on "Strength and Toughness"

50Mn is a carbon structural steel characterized by high strength and toughness, though it possesses only moderate hardenability. It offers good impact resistance but exhibits average low-temperature performance; furthermore, it is sensitive to heat treatment processes and prone to temper brittleness. It is, however, a lower-cost option. 42CrMo is an alloy structural steel featuring even higher strength and toughness, along with superior hardenability. It ensures uniform performance across large-sized components and offers enhanced impact resistance. It is well-suited for low-temperature environments—capable of withstanding temperatures down to -40°C—and is the ideal choice for applications with high-performance requirements, particularly those involving impact and vibration.

2. In-Depth Performance Analysis

Why is 42CrMo Stronger? — The "Contribution" of Alloying Elements

In 42CrMo, the presence of chromium (Cr) enhances the steel's hardenability and hardness. Additionally, molybdenum (Mo) refines the grain structure, improves toughness, and effectively suppresses temper brittleness, thereby enabling the material to maintain exceptional impact resistance while retaining high strength.

Practical Positioning of the Two Materials in Slewing Bearings:

• 50Mn: When operating conditions present no special requirements, we typically select 50Mn as the default choice. Its performance is sufficient to handle the standard loads and operating conditions typical of general engineering machinery, and it offers a distinct cost advantage.

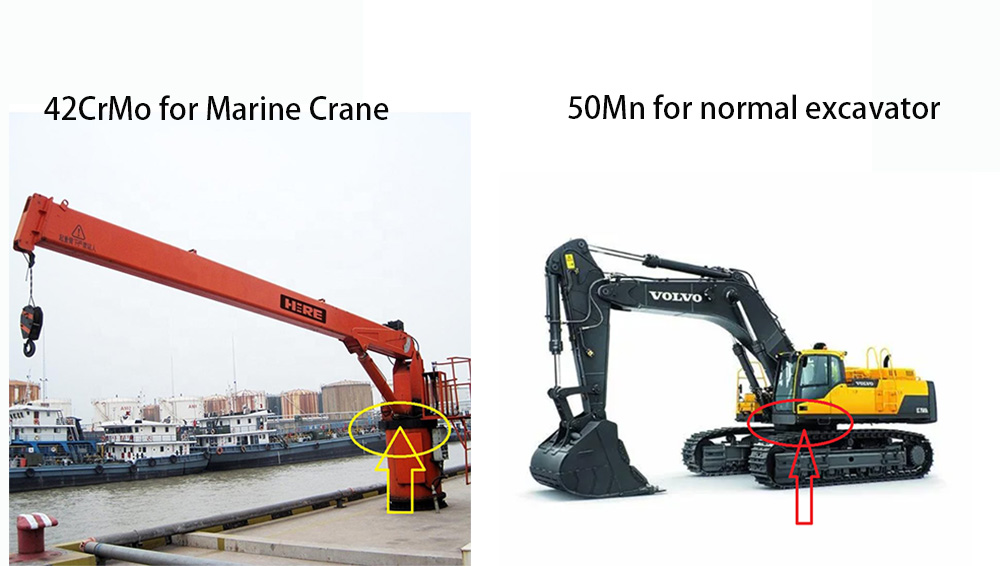

• 42CrMo: For applications involving heavy loads and high impact forces—such as excavators, port cranes, and tunnel boring machines—we recommend utilizing 42CrMo. Furthermore, for equipment operating in low-temperature environments—such as wind power systems or machinery deployed in cold regions—we also highly recommend 42CrMo.

3. Summary and Selection Recommendations

• Prioritize 50Mn: If your equipment operates in a standard environment with stable loads, is cost-sensitive, and has a designed service life of 5 to 10 years, 50Mn represents the optimal choice. • Opt Decisively for 42CrMo: This material is the definitive choice if your equipment is subjected to heavy loads, high-frequency impact, or low-temperature environments—or if there are exceptionally stringent requirements regarding reliability and service life (e.g., 15–20 years). Selecting a slewing bearing made of 42CrMo can significantly reduce the failure rate.

Regardless of the material chosen, the heat treatment process is the critical factor determining final performance. For the same material, a treatment regimen involving "quenching and tempering followed by raceway surface induction hardening" yields performance far superior to that of a simple "normalizing" treatment. When you have procurement needs, please provide us with as much detail as possible regarding your equipment's operating environment; this enables us to make a more professional assessment—helping you decide between 50Mn and 42CrMo—and ensures that you acquire the highest-quality slewing bearings at the most cost-effective price.
