Double-row ball slewing rings feature a double-row rolling element design, enabling them to withstand large axial loads, radial loads, and overturning moments simultaneously, while offering a higher safety factor. The double-row ball slewing rings are commonly used in medium to large-sized lifting equipment, mining machinery, excavators, and other heavy construction machinery.
| H091.22.0307 | EB2.22.0307.200-1SPPN | 11 0307 01 |
| H091.22.0383 | EB2.22.0383.200-1RPPN | 11 0383 01 |
| H091.25.0475 | EB2.25.0475.200-1RPPN | 11 0475 01 |
| H091.25.0575 | EB2.25.0575.401-1RPPN | 11 0575 01 |
| H091.20.0752 | EB2.20.0752.200-1RPPN | 11 0752 01 |
| H091.25.0821 | EB2.25.0821.400-1RPPN | 11 0821 01 |
| H091.20.0968 | EB2.20.0968.200-1SPPN | 11 0968 01 |
| H091.25.1077 | EB2.25.1077.400-2RPPN | 11 1077 01 |
| H091.25.0980 | EB2.25.0980.400-1RPPN | 11 0980 01 |
| H091.28.1117 | EB2.28.1117.400-1SPPN | 11 1117 01 |
| H091.28.1215 | EB2.28.1215.400-1RPPN | 11 1215 01 |
| H091.30.1249 | EB2.30.1249.400-1SPPN | 11 1249 01 |
| H091.35.1249 | EB2.35.1249.400-1SPPN | 11 1249 01 |
| H091.30.1391 | EB2.30.1391.400-1SPPN | 11 1391 01 |
| H091.35.1402 | EB2.35.1402.401-1SPPN | 11 1402 01 |
| H091.35.1390 | EB2.35.1390.400-1SPPN | 11 1390 01 |
| H091.35.1578 | EB2.30.1578.400-1SPPN | 11 1578 01 |

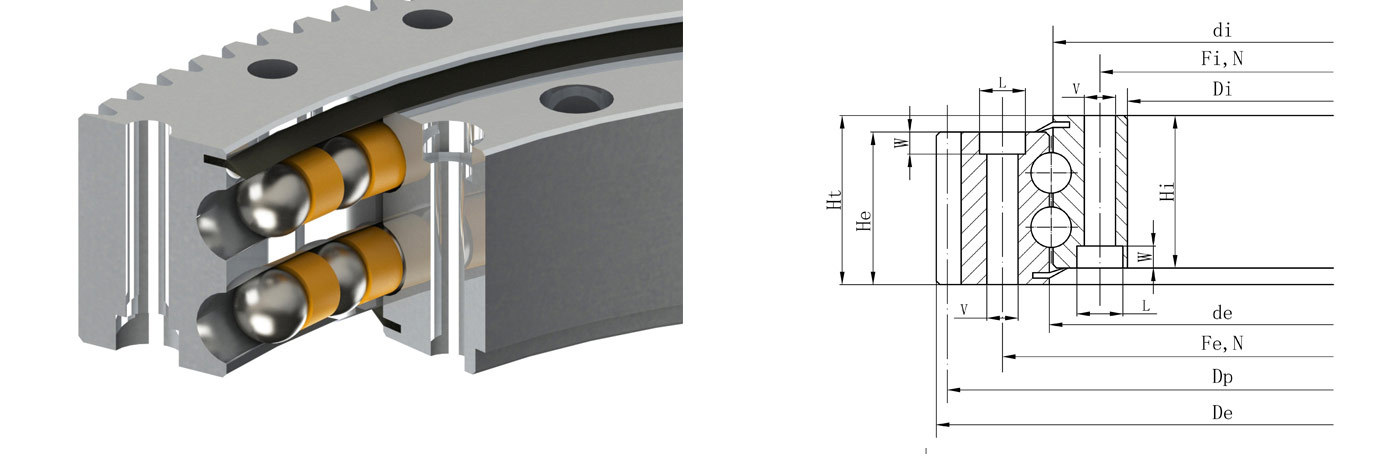

| Model | Dimensions | Installation Size | Tooth Data | Load | Weight | ||||||||||||||
| De | de | di | Di | He | Hi | Ht | Fe | Fi | N | V | L | W | m | Z | x·m | Dp | |||
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [-] | [mm] | [-] | [mm] | [-] | [mm] | [mm] | [kN] | [kg] | |||
| AEB2.22.0307 | 432 | 309 | 305 | 224 | 83 | 83 | 92 | 360 | 254 | 16 | 17 | 25 | 12 | 6 | 70 | – | 420 | 40.8 | 51 |
| AEB2.22.0383 | 504 | 385 | 381 | 300 | 83 | 83 | 92 | 436 | 330 | 16 | 17 | 25 | 12 | 8 | 61 | – | 488 | 81.6 | 64 |
| AEB2.25.0475 | 595 | 477 | 473 | 382 | 88 | 88 | 98 | 540 | 410 | 24 | 17 | 25 | 14 | 5 | 117 | – | 585 | 34 | 85 |
| AEB2.25.0575 | 712 | 577 | 573 | 470 | 88 | 88 | 98 | 640 | 508 | 24 | 17 | 25 | 9 | 8 | 87 | – | 696 | 81.6 | 123 |
| AEB2.20.0752 | 864 | 754 | 750 | 678 | 83 | 83 | 92 | 800 | 706 | 36 | 17 | 25 | 9 | 6 | 142 | – | 852 | 62 | 114 |
| AEB2.25.0821 | 979 | 823 | 819 | 718 | 92 | 92 | 102 | 893 | 753 | 36 | 21 | 31 | 15 | 10 | 94 | 11 | 940 | 141.2 | 200 |
| AEB2.20.0968 | 1080 | 970 | 966 | 893 | 83 | 83 | 92 | 1015 | 922 | 30 | 17 | 25 | 10 | 8 | 133 | – | 1064 | 82.6 | 148 |
| AEB2.25.1077 | 1200 | 1079 | 1075 | 976 | 88 | 88 | 98 | 1135 | 1012 | 36 | 19 | – | – | 8 | 148 | – | 1184 | 83.6 | 210 |
| AEB2.25.0980 | 1144 | 982 | 978 | 870 | 96 | 96 | 110 | 1050 | 910 | 36 | 21 | 31 | 12 | 10 | 111 | 8 | 1110 | 170 | 262 |
| AEB2.28.1117 | 1289 | 1120 | 1114 | 985 | 98 | 98 | 108 | 1198 | 1035 | 40 | 21 | 31 | 18 | 10 | 125 | 10.5 | 1250 | 160.4 | 332 |
| AEB2.28.1215 | 1380 | 1218 | 1212 | 1095 | 98 | 98 | 108 | 1290 | 1135 | 36 | 23 | 34 | 16 | 10 | 136 | – | 1360 | 144 | 334 |
| AEB2.30.1249 | 1476 | 1252 | 1246 | 1085 | 101 | 101 | 110 | 1350 | 1150 | 48 | 26 | 37 | 23 | 10 | 144 | 8.6 | 1440 | 172 | 502 |
| AEB2.35.1249 | 1472 | 1252 | 1246 | 1085 | 134 | 134 | 144 | 1350 | 1150 | 36 | 28 | 41 | 27 | 14 | 102 | 9.1 | 1428 | 295.6 | 640 |
| AEB2.30.1391 | 1603 | 1394 | 1388 | 1208 | 110 | 110 | 120 | 1500 | 1280 | 40 | 29 | – | – | 10 | 157 | 7.5 | 1570 | 202 | 636 |
| AEB2.35.1402 | 1604 | 1405 | 1399 | 1208 | 134 | 134 | 144 | 1500 | 1280 | 48 | 31 | 46 | 28 | 10 | 157 | 7 | 1570 | 295.6 | 710 |
| AEB2.35.1390 | 1634 | 1393 | 1387 | 1208 | 138 | 134 | 148 | 1500 | 1280 | 48 | 31 | 46 | 24 | 14 | 113 | 14 | 1582 | 354.6 | 800 |
| AEB2.30.1578 | 1805 | 1581 | 1575 | 1433 | 140 | 140 | 156 | 1671 | 1485 | 60 | 28 | 41 | 15 | 16 | 109 | 16.9 | 1744 | 411.2 | 810 |
