Flange-type slewing rings, also known as light-duty slewing bearings, are lightweight, thin, and highly maneuverable, making them widely used in food processing machinery, filling machinery, and environmental protection machinery.
This series of slewing rings have no bearing housings, making them more economical. Flange-type slewing rings utilize small-diameter steel balls, resulting in low frictional torque, high rigidity, and excellent rotational accuracy. Flange-type slewing rings primarily bear radial loads, but can also withstand both radial and axial loads simultaneously.
| Honza | INA | ISB | Rothe Erde | Rollix | SKF | KAYDON |
| HVLU 20 0414 N | VLU 20 0414 | NBL.20.0414.200-1PPN | 230.20.0400 Typ 21/520.0 | 23 0411 01 | RKS.23 0411 | RK6-16P1Z |
| HVLU 20 0544 N | VLU 20 0544 | NBL.20.0544.200-1PPN | 230.20.0500 Typ 21/650.0 | 23 0541 01 | RKS.23 0541 | RK6-22P1Z |
| HVLU 20 0644 N | VLU 20 0644 | NBL.20.0644.200-1PPN | 230.20.0600 Typ 21/750.0 | 23 0641 01 | RKS.23 0641 | RK6-25P1Z |
| HVLU 20 0744 N | VLU 20 0744 | NBL.20.0744.200-1PPN | 230.20.0700 Typ 21/850.0 | 23 0741 01 | RKS.23 0741 | RK6-29P1Z |
| HVLU 20 0844 N | VLU 20 0844 | NBL.20.0844.200-1PPN | 230.20.0800 Typ 21/950.0 | 23 0841 01 | RKS.23 0841 | RK6-33P1Z |
| HVLU 20 0944 N | VLU 20 0944 | NBL.20.0944.200-1PPN | 230.20.0900 Typ 21/1050.0 | 23 0941 01 | RKS.23 0941 | RK6-37P1Z |
| HVLU 20 1094 N | VLU 20 1094 | NBL.20.1094.200-1PPN | 230.20.1000 Typ 21/1200.0 | 23 1091 01 | RKS.23 1091 | RK6-43P1Z |
| HVLU 30 0955 N | VLU 30 0955 | NBL.30.0955.200-1SPTN | 280.30.0900.013 Typ 110/1100.1 | 23 0955 01 | RKS.23 0955 | |
| HVLU 30 1055 N | VLU 30 1055 | NBL.30.1055.200-1SPTN | 280.30.1000.013 Typ 110/1200.1 | 23 1055 01 | RKS.23 1055 | |
| HVLU 30 1155 N | VLU 30 1155 | NBL.30.1155.200-1SPTN | 280.30.1100.013 Typ 110/1300.1 | 23 1155 01 | RKS.23 1155 | |
| HVLU 30 1255 N | VLU 30 1255 | NBL.30.1255.200-1SPTN | 280.30.1200.013 Typ 110/1400.1 | 23 1255 01 | RKS.23 1255 | |
| HVLU 30 1355 N | VLU 30 1355 | NBL.30.1355.200-1SPTN | 280.30.1300.013 Typ 110/1500.1 | 23 1355 01 | RKS.23 1355 | |
| HVLU 30 1455 N | VLU 30 1455 | NBL.30.1455.200-1SPTN | 280.30.1400.013 Typ 110/1600.1 | 23 1455 01 | RKS.23 1455 |

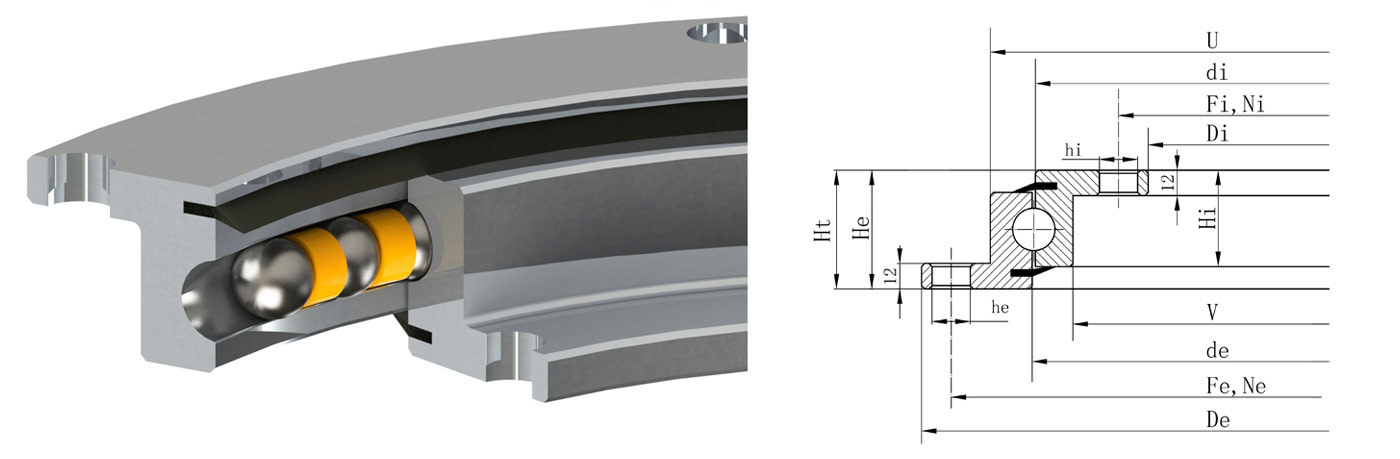

| Model | Dimensions | Installation Size | Weight | |||||||||||||
| De | de | di | Di | He | Hi | Ht | U | V | Fe | Fi | Ne | he | Ni | hi | ||
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [-] | [-] | [kg] | |||
| CBL.20.0414 | 518 | 415.5 | 412.5 | 304 | 45.5 | 45.5 | 56 | 453 | 375 | 490 | 332 | 16 | 18 | 24 | 18 | 23 |
| CBL.20.0544 | 648 | 545.5 | 542.5 | 434 | 45.5 | 45.5 | 56 | 583 | 505 | 620 | 462 | 20 | 18 | 28 | 18 | 30.4 |
| CBL.20.0644 | 748 | 645.5 | 642.5 | 534 | 45.5 | 45.5 | 56 | 683 | 605 | 720 | 562 | 24 | 18 | 32 | 18 | 35.8 |
| CBL.20.0744 | 848 | 745.5 | 742.5 | 634 | 45.5 | 45.5 | 56 | 783 | 705 | 820 | 662 | 24 | 18 | 32 | 18 | 42.2 |
| CBL.20.0844 | 948 | 845.5 | 842.5 | 734 | 45.5 | 45.5 | 56 | 883 | 805 | 920 | 762 | 28 | 18 | 36 | 18 | 47.1 |
| CBL.20.0944 | 1048 | 945.5 | 942.5 | 834 | 45.5 | 45.5 | 56 | 983 | 905 | 1020 | 862 | 32 | 18 | 40 | 18 | 52.3 |
| CBL.20.1094 | 1198 | 1095.5 | 1092.5 | 984 | 45.5 | 45.5 | 56 | 1133 | 1055 | 1170 | 1012 | 32 | 18 | 40 | 18 | 61.1 |
| CBL.30.0955 | 1100 | 953.5 | 956.5 | 805 | 71 | 71 | 90 | 1017 | 893 | 1060 | 845 | 30 | 22 | 30 | 22 | 131 |
| CBL.30.1055 | 1200 | 1053.5 | 1056.5 | 905 | 71 | 71 | 90 | 1117 | 993 | 1160 | 945 | 30 | 22 | 30 | 22 | 145 |
| CBL.30.1155 | 1300 | 1153.5 | 1156.5 | 1005 | 71 | 71 | 90 | 1217 | 1093 | 1260 | 1045 | 36 | 22 | 36 | 22 | 159 |
| CBL.30.1255 | 1400 | 1253.5 | 1256.5 | 1105 | 71 | 71 | 90 | 1317 | 1193 | 1360 | 1145 | 42 | 22 | 42 | 22 | 172 |
| CBL.30.1355 | 1500 | 1353.5 | 1356.5 | 1205 | 71 | 71 | 90 | 1417 | 1293 | 1460 | 1245 | 42 | 22 | 42 | 22 | 186 |
| CBL.30.1455 | 1600 | 1453.5 | 1456.5 | 1305 | 71 | 71 | 90 | 1517 | 1393 | 1560 | 1345 | 48 | 22 | 48 | 22 | 200 |
