Flange-type slewing rings, also known as light-duty slewing bearings, are lightweight, thin, and highly maneuverable, making them widely used in food processing machinery, filling machinery, and environmental protection machinery.

This series of slewing rings have no bearing housings, making them more economical. Flange-type slewing rings utilize small-diameter steel balls, resulting in low frictional torque, high rigidity, and excellent rotational accuracy. Flange-type slewing rings primarily bear radial loads, but can also withstand both radial and axial loads simultaneously.

GET A QUOTE

Add to Quote List View Quote List

Description

Honza	INA	ISB	Rothe Erde	Rollix	SKF	KAYDON
HVLI 20 0414 N	VLI 20 0414 N	ZBL.20.0414.200-1SPTN	232.20.0400 Typ 21/520.0	22 0411 01	RKS.22 0411	RK6-16N1Z
HVLI 20 0544 N	VLI 20 0544 N	ZBL.20.0544.200-1SPTN	232.20.0500 Typ 21/650.0	22 0541 01	RKS.22 0541	RK6-22N1Z
HVLI 20 0644 N	VLI 20 0644 N	ZBL.20.0644.200-1SPTN	232.20.0600 Typ 21/750.0	22 0641 01	RKS.22 0641	RK6-25N1Z
HVLI 20 0744 N	VLI 20 0744 N	ZBL.20.0744.200-1SPTN	232.20.0700 Typ 21/850.0	22 0741 01	RKS.22 0741	RK6-29N1Z
HVLI 20 0844 N	VLI 20 0844 N	ZBL.20.0844.200-1SPTN	232.20.0800 Typ 21/950.0	22 0841 01	RKS.22 0841	RK6-33N1Z
HVLI 20 0944 N	VLI 20 0944 N	ZBL.20.0944.200-1SPTN	232.20.0900 Typ 21/1050.0	22 0941 01	RKS.22 0941	RK6-37N1Z
HVLI 20 1094 N	VLI 20 1094 N	ZBL.20.1094.200-1SPTN	232.20.1000 Typ 21/1200.0	22 1091 01	RKS.22 1091	RK6-43N1Z
HVLI 30 0955 N	VLI 30 0955 N	ZBL.30.0955.200-1SPTN	282.30.0900.013 Typ 110/1100.1	22 0955 01	RKS.22 0955
HVLI 30 1055 N	VLI 30 1055 N	ZBL.30.1055.200-1SPTN	282.30.1000.013 Typ 110/1200.1	22 1055 01	RKS.22 1055
HVLI 30 1155 N	VLI 30 1155 N	ZBL.30.1155.200-1SPTN	282.30.1100.013 Typ 110/1300.1	22 1155 01	RKS.22 1155
HVLI 30 1255 N	VLI 30 1255 N	ZBL.30.1255.200-1SPTN	282.30.1200.013 Typ 110/1400.1	22 1255 01	RKS.22 1255
HVLI 30 1355 N	VLI 30 1355 N	ZBL.30.1355.200-1SPTN	282.30.1300.013 Typ 110/1500.1	22 1355 01	RKS.22 1355
HVLI 30 1455 N	VLI 30 1455 N	ZBL.30.1455.200-1SPTN	282.30.1400.013 Typ 110/1600.1	22 1455 01	RKS.22 1455

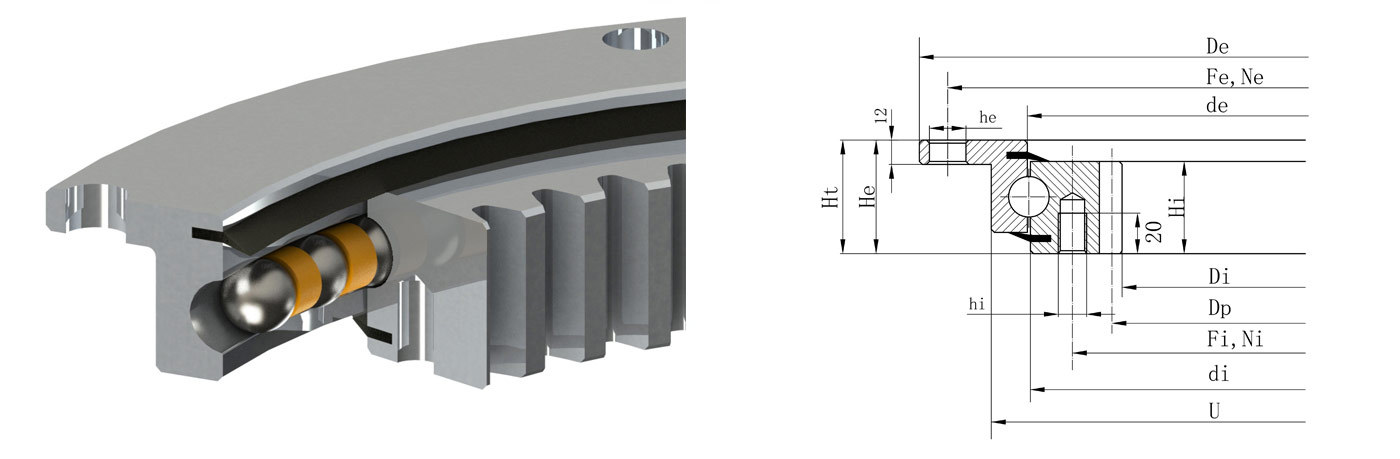

Model	Dimensions									Installation Size						Tooth Data				Load	Weight
	De	de	di	Di	He	Hi	Ht	U	V	Fe	Fi	Ne	he	Ni	hi	Dp	m	z	k.m
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[-]		[-]		[mm]	[mm]	[-]	[mm]	[kN]	[kg]
BBL.20.0414	518	415.5	412.5	326.5	45.5	45.5	56	453	–	490	375	16	18	12	M12	335	5	67	-0.75	27.08	26.9
BBL.20.0544	648	545.5	542.5	445.2	45.5	45.5	56	583	–	620	505	20	18	16	M12	456	6	76	-0.6	32	36.7
BBL.20.0644	748	645.5	642.5	547.2	45.5	45.5	56	683	–	720	605	24	18	18	M12	558	6	93	-0.6	31.24	43.4
BBL.20.0744	848	745.5	742.5	649.2	45.5	45.5	56	783	–	820	705	24	18	20	M12	660	6	110	-0.6	30.64	50.8
BBL.20.0844	948	845.5	842.5	737.6	45.5	45.5	56	883	–	920	805	28	18	20	M12	752	8	94	-0.8	41.6	61.3
BBL.20.0944	1048	945.5	942.5	841.6	45.5	45.5	56	983	–	1020	905	32	18	22	M12	856	8	107	-0.8	40.98	65.4
BBL.20.1094	1198	1095.5	1092.5	985.6	45.5	45.5	56	1133	–	1170	1055	32	18	24	M12	1000	8	125	-0.8	40.32	80.3
BBL.30.0955	1100	953.5	956.5	812	71	71	90	1017	–	1060	894	30	22	30	M20	830	10	83	–1	82.36	159
BBL.30.1055	1200	1053.5	1056.5	912	71	71	90	1117	–	1160	994	30	22	30	M20	930	10	93	–1	81.26	176
BBL.30.1155	1300	1153.5	1156.5	1012	71	71	90	1217	–	1260	1094	36	22	36	M20	1030	10	103	–1	80.3	192
BBL.30.1255	1400	1253.5	1256.5	1112	71	71	90	1317	–	1360	1194	42	22	42	M20	1130	10	113	–1	79.48	208
BBL.30.1355	1500	1353.5	1356.5	1212	71	71	90	1417	–	1460	1294	42	22	42	M20	1230	10	123	–1	78.78	226
BBL.30.1455	1600	1453.5	1456.5	1310	71	71	90	1517	–	1560	1394	48	22	48	M20	1330	10	133	–	78.2	243
