The single-row four-point contact ball slewing ring features a double-ring design, resulting in a compact size and light weight. Its steel balls and arc-shaped raceways form four-point contact, allowing it to simultaneously bearing axial loads, radial loads, and overturning moments. This type of slewing ring is suitable for various engineering machinery equipment such as rotary conveyors, welding positioners, small and medium-sized cranes, and excavators.

GET A QUOTE

Add to Quote List View Quote List

Description

Honza	Rothe Erde	ISB	LYC	SKF	INA	ROLLIX	Kaydon
H062.15.0245	062.15.0245.500.01.1503	ZB1.15.0245.200-1SPTN	013.15.0245
H062.20.0307	062.20.0307.500.01.1503	ZB1.20.0307.200-1SPTN	013.20.0307
H062.20.0314	062.20.0314.500.01.1503	ZB1.20.0314.200-1SPTN	013.20.0314
H062.20.0414	062.20.0414.500.01.1503	ZB1.20.0414.200-1SPTN	013.20.0414	RKS.062.20.0414	VSI 20 0414 N	32 0411 01	HS6-16N1Z
H062.20.0544	062.20.0544.500.01.1503	ZB1.20.0544.200-1SPTN	013.20.0544	RKS.062.20.0544	VSI 20 0544 N	32 0541 01	HS6-21N1Z
H062.20.0644	062.20.0644.500.01.1503	ZB1.20.0644.200-1SPTN	013.20.0644	RKS.062.20.0644	VSI 20 0644 N	32 0641 01	HS6-25N1Z
H062.20.0744	062.20.0744.500.01.1503	ZB1.20.0744.200-1SPTN	013.20.0744	RKS.062.20.0744	VSI 20 0744 N	32 0741 01	HS6-29N1Z
H062.20.0844	062.20.0844.500.01.1503	ZB1.20.0844.200-1SPTN	013.20.0844	RKS.062.20.0844	VSI 20 0844 N	32 0841 01	HS6-33N1Z
H062.20.0944	062.20.0944.500.01.1503	ZB1.20.0944.200-1SPTN	013.20.0944	RKS.062.20.0944	VSI 20 0944 N	32 0941 01	HS6-37N1Z
H062.20.1094	062.20.1094.500.01.1503	ZB1.20.1094.200-1SPTN	013.20.1094	RKS.062.20.1094	VSI 20 1094 N	32 1091 01	HS6-43N1Z
H062.25.0455	062.25.0455.500.01.1503	ZB1.25.0455.200-1SPTN	013.25.0455	RKS.062.25.0455	VSI 25 0455 N	32 0455 01
H062.25.0555	062.25.0555.500.01.1503	ZB1.25.0555.200-1SPTN	013.25.0555	RKS.062.25.0555	VSI 25 0555 N	32 0555 01
H062.25.0655	062.25.0655.500.01.1503	ZB1.25.0655.200-1SPTN	013.25.0655	RKS.062.25.0655	VSI 25 0655 N	32 0655 01
H062.25.0755	062.25.0755.500.01.1503	ZB1.25.0755.200-1SPTN	013.25.0755	RKS.062.25.0755	VSI 25 0755 N	32 0755 01
H062.25.0855	062.25.0855.500.01.1503	ZB1.25.0855.200-1SPTN	013.25.0855	RKS.062.25.0855	VSI 25 0855 N	32 0855 01
H062.25.0955	062.25.0955.500.01.1503	ZB1.25.0955.200-1SPTN	013.25.0955	RKS.062.25.0955	VSI 25 0955 N	32 0955 01
H062.25.1055	062.25.1055.500.01.1503	ZB1.25.1055.200-1SPTN	013.25.1055	RKS.062.25.1055	VSI 25 1055 N	32 1055 01
H062.25.1155	062.25.1155.500.01.1503	ZB1.25.1155.200-1SPTN	013.25.1155	RKS.062.25.1155	VSI 25 1155 N	32 1155 01
H062.25.1255	062.25.1255.500.01.1503	ZB1.25.1255.200-1SPTN	013.25.1255	RKS.062.25.1255	VSI 25 1255 N	32 1255 01
H062.25.1355	062.25.1355.500.01.1503	ZB1.25.1355.200-1SPTN	013.25.1355	RKS.062.25.1355	VSI 25 1355 N	32 1355 01
H062.25.1455	062.25.1455.500.01.1503	ZB1.25.1455.200-1SPTN	013.25.1455	RKS.062.25.1455	VSI 25 1455 N	32 1455 01
H062.25.1204	062.25.1204.500.01.1503	ZB1.25.1204.200-1SPTN	013.25.1204
H062.25.1314	062.25.1314.500.01.1503	ZB1.25.1314.200-1SPTN	013.25.1314
H062.25.1424	062.25.1424.500.01.1503	ZB1.25.1424.200-1SPTN	013.25.1424
H062.25.1534	062.25.1534.500.01.1503	ZB1.25.1534.200-1SPTN	013.25.1534
H062.25.1644	062.25.1644.500.01.1503	ZB1.25.1644.200-1SPTN	013.25.1644
H062.25.1754	062.25.1754.500.01.1503	ZB1.25.1754.200-1SPTN	013.25.1754
H062.25.1904	062.25.1904.500.01.1503	ZB1.25.1904.200-1SPTN	013.25.1904
H062.50.1800	062.50.1800.500.01.1503	ZB1.50.1800.200-1SPTN	013.50.1800
H062.50.2000	062.50.2000.500.01.1503	ZB1.50.2000.200-1SPTN	013.50.2000
H062.50.2240	062.50.2240.500.01.1503	ZB1.50.2240.200-1SPTN	013.50.2240
H062.50.2490	062.50.2490.500.01.1503	ZB1.50.2490.200-1SPTN	013.50.2490
H062.50.2800	062.50.2800.500.01.1503	ZB1.50.2800.200-1SPTN	013.50.2800

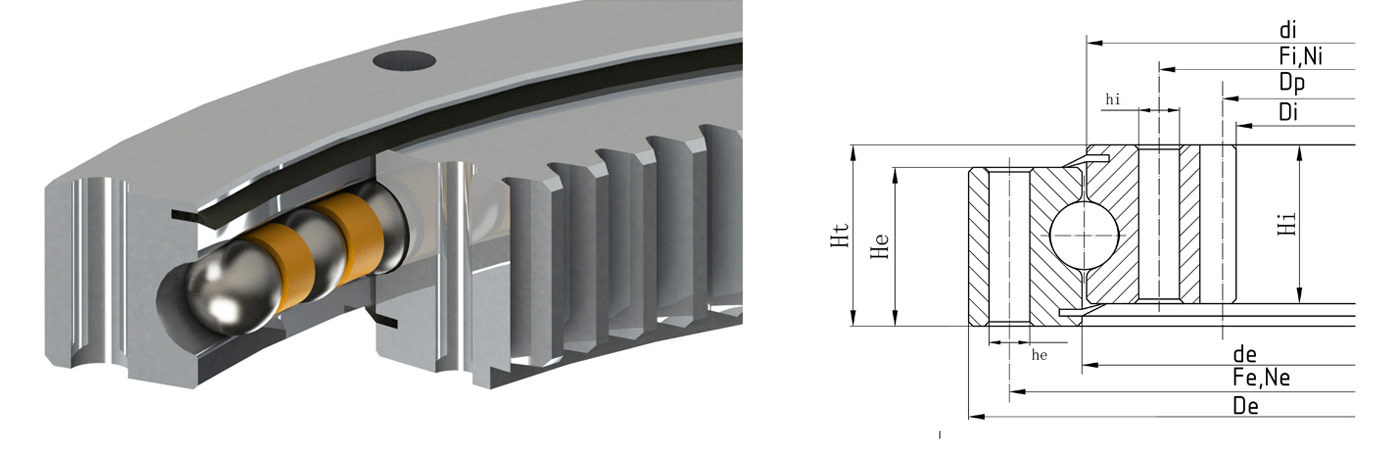

Model	Dimensions							Installation size						Tooth data				Load	Weight
	De	de	di	Di	He	Hi	Ht	Fe	Ne	he	Fi	Ni	hi	m	Z	x·m	Dp
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[-]		[mm]	[-]		[mm]	[-]	[mm]	[mm]	[kN]	[kg]
BZB1.15.0245	300	246	244	174.5	32	32	40	280	20	11	210	20	11	3	60	–	180	–	–
BZB1.20.0307	385	309.5	306.5	217	45	45	55	358	24	13.5	259	24	13.5	4	56	–	224	–	–
BZB1.20.0314	386	315.5	312.5	225	45.5	45.5	56	360	24	14	275	24	M12	5	47	–	235	31	22
BZB1.20.0414	486	415.5	412.5	325	45.5	45.5	56	460	24	14	375	24	M12	5	67	–	335	31	31
BZB1.20.0544	616	545.5	542.5	444	45.5	45.5	56	590	32	14	505	32	M12	6	76	–	456	37.4	43
BZB1.20.0644	716	645.5	642.5	546	45.5	45.5	56	690	36	14	605	36	M12	6	93	–	558	37.4	50
BZB1.20.0744	816	745.5	742.5	648	45.5	45.5	56	790	40	14	705	40	M12	6	110	–	660	37.4	57
BZB1.20.0844	916	845.5	842.5	736	45.5	45.5	56	890	40	14	805	40	M12	8	94	–	752	50	69
BZB1.20.0944	1016	945.5	942.5	840	45.5	45.5	56	990	44	14	905	44	M12	8	107	–	856	50	75
BZB1.20.1094	1166	1095.5	1092.5	984	45.5	45.5	56	1140	48	14	1055	48	M12	8	125	–	1000	50	91
BZB1.25.0455	555	454	456	304	54	71	80	515	18	22	394	18	M20	8	40	–	320	80.4	64
BZB1.25.0555	655	554	556	416	54	71	80	615	20	22	494	20	M20	8	54	–	432	80.4	76
BZB1.25.0655	755	654	656	512	54	71	80	715	24	22	594	24	M20	8	66	–	528	80.4	102
BZB1.25.0755	855	754	756	610	54	71	80	815	24	22	694	24	M20	10	63	–	630	100.6	119
BZB1.25.0855	955	854	856	710	54	71	80	915	28	22	794	28	M20	10	73	–	730	100.6	137
BZB1.25.0955	1055	954	956	810	54	71	80	1015	30	22	894	30	M20	10	83	–	830	100.6	149
BZB1.25.1055	1155	1054	1056	910	54	71	80	1115	30	22	994	30	M20	10	93	–	930	100.6	165
BZB1.25.1155	1255	1154	1156	1010	54	71	80	1215	36	22	1094	36	M20	10	103	–	1030	100.6	180
BZB1.25.1255	1355	1254	1256	1110	54	71	80	1315	42	22	1194	42	M20	10	113	–	1130	100.6	195
BZB1.25.1355	1455	1354	1356	1210	54	71	80	1415	42	22	1294	42	M20	10	123	–	1230	100.6	212
BZB1.25.1455	1555	1454	1456	1310	54	71	80	1515	48	22	1394	48	M20	10	133	–	1330	100.6	227
BZB1.25.1204	1289	1207.5	1200.5	1072	58	58	68	1257	45	16	1151	45	16	10	108	-5	1080	96.6	145
BZB1.25.1314	1399	1317.5	1310.5	1182	58	58	68	1367	50	16	1261	50	16	10	119	-5	1190	96.6	159
BZB1.25.1424	1509	1427.5	1420.5	1292	58	58	68	1477	54	16	1371	54	16	10	130	-5	1300	96.6	172
BZB1.25.1534	1619	1537.5	1530.5	1402	58	58	68	1587	60	16	1481	60	16	10	141	-5	1410	96.6	186
BZB1.25.1644	1752	1647.5	1640.5	1495	58	58	68	1708	54	22	1580	54	22	10	150	-6.5	1500	96.6	236
BZB1.25.1754	1862	1757.5	1750.5	1605	58	58	68	1818	60	22	1690	60	22	10	161	-6.5	1610	96.6	252
BZB1.25.1904	2012	1907.5	1900.5	1729	58	58	68	1968	64	22	1840	64	22	14	124	-6.5	1736	135.2	299
BZB1.50.1800	1971	1798	1802	1554	99	100	109	1905	36	33	1695	36	33	14	112	-7	1568	257	762
BZB1.50.2000	2171	1998	2002	1764	99	100	109	2105	40	33	1895	40	33	14	127	-7	1778	257	843
BZB1.50.2240	2411	2238	2242	1984	99	100	109	2345	48	33	2135	48	33	16	125	-8	2000	293.6	961
BZB1.50.2490	2661	2488	2492	2240	99	100	109	2595	54	33	2385	54	33	16	141	-8	2256	293.6	1053
BZB1.50.2800	2971	2798	2802	2544	99	100	109	2905	60	33	2695	60	33	16	160	-8	2560	293.6	1205
