The single-row four-point contact ball slewing ring features a double-ring design, resulting in a compact size and light weight. Its steel balls and arc-shaped raceways form four-point contact, allowing it to simultaneously bearing axial loads, radial loads, and overturning moments. This type of slewing ring is suitable for various engineering machinery equipment such as rotary conveyors, welding positioners, small and medium-sized cranes, and excavators.

GET A QUOTE

Add to Quote List View Quote List

Description

Honza	Rothe Erde	ISB	LYC	SKF	INA	ROLLIX	Kaydon
H061.12.0181	061.12.0181.500.01.1502	EB1.12.0181.200-1SPTN	011.12.0181
H061.17.0235	061.17.0235.500.01.1503	EB1.17.0235.200-1SPTN	011.17.0235
H061.20.0289	061.20.0289.500.01.1503	EB1.20.0289.200-1SPTN	011.20.0289
H061.20.0314	061.20.0314.500.01.1503	EB1.20.0314.200-1SPTN	011.20.0314
H061.20.0414	061.20.0414.500.01.1503	EB1.20.0414.200-1SPTN	011.20.0414	RKS.061.20.0414	VSA 20 0414 N	31 0411 01	HS6-16E1Z
H061.20.0544	061.20.0544.500.01.1503	EB1.20.0544.200-1SPTN	011.20.0544	RKS.061.20.0544	VSA 20 0544 N	31 0541 01	HS6-21E1Z
H061.20.0644	061.20.0644.500.01.1503	EB1.20.0644.200-1SPTN	011.20.0644	RKS.061.20.0644	VSA 20 0644 N	31 0641 01	HS6-25E1Z
H061.20.0744	061.20.0744.500.01.1503	EB1.20.0744.200-1SPTN	011.20.0744	RKS.061.20.0744	VSA 20 0744 N	31 0741 01	HS6-29E1Z
H061.20.0844	061.20.0844.500.01.1503	EB1.20.0844.200-1SPTN	011.20.0844	RKS.061.20.0844	VSA 20 0844 N	31 0841 01	HS6-33E1Z
H061.20.0944	061.20.0944.500.01.1503	EB1.20.0944.200-1SPTN	011.20.0944	RKS.061.20.0944	VSA 20 0944 N	31 0941 01	HS6-37E1Z
H061.20.1094	061.20.1094.500.01.1503	EB1.20.1094.200-1SPTN	011.20.1094	RKS.061.20.1094	VSA 20 1094 N	31 1091 01	HS6-43E1Z
H061.25.0455	061.25.0455.500.01.1503	EB1.25.0455.200-1SPTN	011.25.0455	RKS.061.25.0455	VSA 25 0455 N	31 0455 01
H061.25.0555	061.25.0555.500.01.1503	EB1.25.0555.200-1SPTN	011.25.0555	RKS.061.25.0555	VSA 25 0555 N	31 0555 01
H061.25.0655	061.25.0655.500.01.1503	EB1.25.0655.200-1SPTN	011.25.0655	RKS.061.25.0655	VSA 25 0655 N	31 0655 01
H061.25.0755	061.25.0755.500.01.1503	EB1.25.0755.200-1SPTN	011.25.0755	RKS.061.25.0755	VSA 25 0755 N	31 0755 01
H061.25.0855	061.25.0855.500.01.1503	EB1.25.0855.200-1SPTN	011.25.0855	RKS.061.25.0855	VSA 25 0855 N	31 0855 01
H061.25.0955	061.25.0955.500.01.1503	EB1.25.0955.200-1SPTN	011.25.0955	RKS.061.25.0955	VSA 25 0955 N	31 0955 01
H061.25.1055	061.25.1055.500.01.1503	EB1.25.1055.200-1SPTN	011.25.1055	RKS.061.25.1055	VSA 25 1055 N	31 1055 01
H061.25.1155	061.25.1155.500.01.1503	EB1.25.1155.200-1SPTN	011.25.1155	RKS.061.25.1155	VSA 25 1155 N	31 1155 01
H061.25.1255	061.25.1255.500.01.1503	EB1.25.1255.200-1SPTN	011.25.1255	RKS.061.25.1255	VSA 25 1255 N	31 1255 01
H061.25.1355	061.25.1355.500.01.1503	EB1.25.1355.200-1SPTN	011.25.1355	RKS.061.25.1355	VSA 25 1355 N	31 1355 01
H061.25.1455	061.25.1455.500.01.1503	EB1.25.1455.200-1SPTN	011.25.1455	RKS.061.25.1455	VSA 25 1455 N	31 1455 01
H061.25.1204	061.25.1204.500.01.1503	EB1.25.1204.200-1SPTN	011.25.1204
H061.25.1314	061.25.1314.500.01.1503	EB1.25.1314.200-1SPTN	011.25.1314
H061.25.1424	061.25.1424.500.01.1503	EB1.25.1424.200-1SPTN	011.25.1424
H061.25.1534	061.25.1534.500.01.1503	EB1.25.1534.200-1SPTN	011.25.1534
H061.25.1644	061.25.1644.500.01.1503	EB1.25.1644.200-1SPTN	011.25.1644
H061.25.1754	061.25.1754.500.01.1503	EB1.25.1754.200-1SPTN	011.25.1754
H061.25.1904	061.25.1904.500.01.1503	EB1.25.1904.200-1SPTN	011.25.1904
H061.50.1900	061.50.1900.500.01.1503	EB1.50.1900.200-1SPTN	011.50.1900
H061.50.2130	061.50.2130.500.01.1503	EB1.50.2130.200-1SPTN	011.50.2130

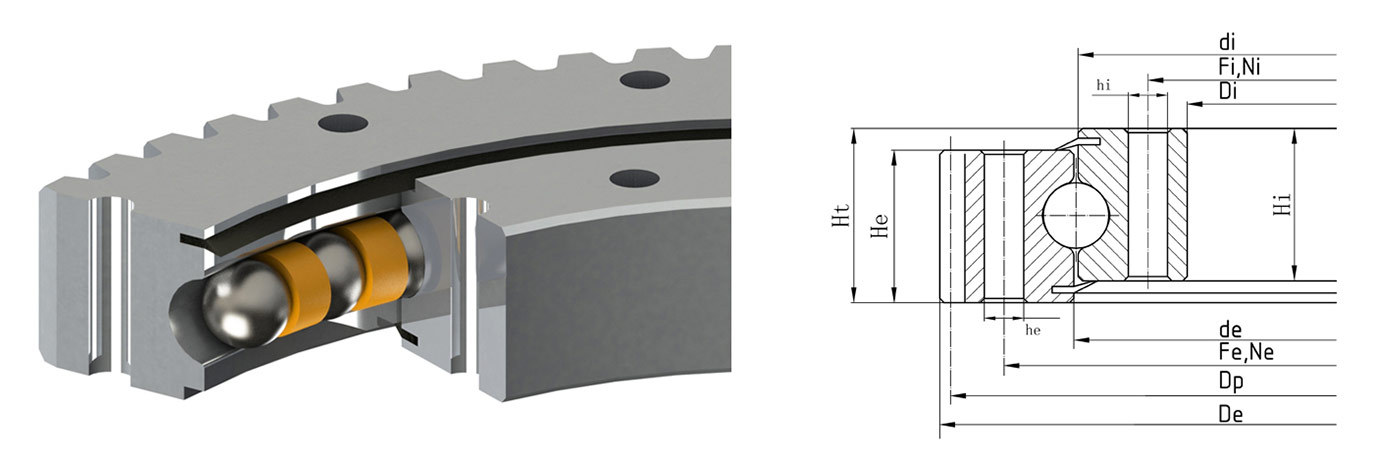

Model	Dimensions							Installation size						Tooth Data				Load	Weight
	De	de	di	Di	He	Hi	Ht	Fe	Ne	he	Fi	Ni	hi	m	Z	x·m	Dp
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[-]		[mm]	[-]		[mm]	[-]	[mm]	[mm]	[kN]	[kg]
AEB1.12.0181	244	182	180	125	25	25	25	214	24	11	144.5	20	11	2	120	–	240	–	–
AEB1.17.0235	318	236	234	169	37	34	45	275	20	13.5	195	20	M12	3	104	–	312	–	–
AEB1.20.0289	379	290	288	210	40	40	45	335	24	13.5	240	24	13.5	4	92	–	372	–	–
AEB1.20.0314	404	315.5	312.5	242	45.5	45.5	56	355	20	M12	268	20	14	5	79	–	395	30	23
AEB1.20.0414	504	415.5	412.5	342	45.5	45.5	56	455	20	M12	368	24	14	5	99	–	495	30	32
AEB1.20.0544	640.8	545.5	542.5	472	45.5	45.5	56	585	28	M12	498	32	14	6	105	–	630	36	43
AEB1.20.0644	742.8	645.5	642.5	572	45.5	45.5	56	685	32	M12	598	36	14	6	122	–	732	36	52
AEB1.20.0744	838.8	745.5	742.5	672	45.5	45.5	56	785	36	M12	698	40	14	6	138	–	828	36	58
AEB1.20.0844	950.4	845.5	842.5	772	45.5	45.5	56	885	36	M12	798	40	14	8	117	–	936	48	71
AEB1.20.0944	1046.4	945.5	942.5	872	45.5	45.5	56	985	40	M12	898	44	14	8	129	–	1032	48	77
AEB1.20.1094	1198.4	1095.5	1092.5	1022	45.5	45.5	56	1135	44	M12	1048	48	14	8	148	–	1184	48	90
AEB1.25.0455	590.4	454	456	355	71	54	80	516	18	M20	395	18	22	8	72	–	576	77.2	74
AEB1.25.0555	694.4	554	556	455	71	54	80	616	20	M20	495	20	22	8	85	–	680	77.2	93
AEB1.25.0655	798.4	654	656	555	71	54	80	716	24	M20	595	24	22	8	98	–	784	77.2	111
AEB1.25.0755	898	754	756	655	71	54	80	816	24	M20	695	24	22	9	98	–	882	86.8	125
AEB1.25.0855	997	854	856	755	71	54	80	916	28	M20	795	28	22	9	109	–	981	86.8	145
AEB1.25.0955	1096	954	956	855	71	54	80	1016	30	M20	895	30	22	9	120	–	1080	86.8	155
AEB1.25.1055	1198	1054	1056	955	71	54	80	1116	30	M20	995	30	22	10	118	–	1180	96.6	171
AEB1.25.1155	1298	1154	1156	1055	71	54	80	1216	36	M20	1095	36	22	10	128	–	1280	96.6	186
AEB1.25.1255	1398	1254	1256	1155	71	54	80	1316	42	M20	1195	42	22	10	138	–	1380	96.6	201
AEB1.25.1355	1498	1354	1356	1255	71	54	80	1416	42	M20	1295	42	22	10	148	–	1480	96.6	218
AEB1.25.1455	1598	1454	1456	1355	71	54	80	1516	48	M20	1395	48	22	10	158	–	1580	96.6	233
AEB1.25.1204	1338	1207.5	1200.5	1119	58	58	68	1257	45	16	1151	45	16	10	131	5	1310	92.8	154
AEB1.25.1314	1448	1317.5	1310.5	1229	58	58	68	1367	50	16	1261	50	16	10	142	5	1420	92.8	166
AEB1.25.1424	1558	1427.5	1420.5	1339	58	58	68	1477	54	16	1371	54	16	10	153	5	1530	92.8	180
AEB1.25.1534	1668	1537.5	1530.5	1449	58	58	68	1587	60	16	1481	60	16	10	164	5	1640	92.8	193
AEB1.25.1644	1791	1647.5	1640.5	1536	58	58	68	1708	54	22	1580	54	22	10	176	6.5	1760	92.8	237
AEB1.25.1754	1901	1757.5	1750.5	1646	58	58	68	1818	60	22	1690	60	22	10	187	6.5	1870	92.8	257
AEB1.25.1904	2073	1907.5	1900.5	1796	58	58	68	1968	64	22	1840	64	22	14	145	6.5	2030	130	300
AEB1.50.1900	2139.2	1898	1902	1729	100	99	109	2005	36	33	1795	36	33	14	150	7	2100	257	820
AEB1.50.2130	2380.8	2128	2132	1959	100	99	109	2235	48	33	2025	48	33	16	146	8	2336	293.6	931
