The single-row four-point contact ball slewing ring features a double-ring design, resulting in a compact size and light weight. Its steel balls and arc-shaped raceways form four-point contact, allowing it to simultaneously bearing axial loads, radial loads, and overturning moments. This type of slewing ring is suitable for various engineering machinery equipment such as rotary conveyors, welding positioners, small and medium-sized cranes, and excavators.

GET A QUOTE

Add to Quote List View Quote List

Description

Honza	Rothe Erde	ISB	LYC	SKF	INA	ROLLIX	Kaydon
H060.12.0181	060.12.0181.500.01.1502	NB1.12.0181.200-1SPTN	010.12.0181
H060.19.0217	060.19.0217.500.01.1503	NB1.19.0217.200-1SPTN	010.19.0217
H060.20.0260	060.20.0260.500.01.1503	NB1.20.0260.200-1SPTN	010.20.0260
H060.20.0314	060.20.0314.500.01.1503	NB1.20.0314.200-1SPTN	010.20.0314
H060.20.0414	060.20.0414.500.01.1503	NB1.20.0414.200-1SPTN	010.20.0414	RKS.060.20.0414	VSU 20 0414 N	33 0411 01	HS6-16P1Z
H060.20.0544	060.20.0544.500.01.1503	NB1.20.0544.200-1SPTN	010.20.0544	RKS.060.20.0544	VSU 20 0544 N	33 0541 01	HS6-21P1Z
H060.20.0644	060.20.0644.500.01.1503	NB1.20.0644.200-1SPTN	010.20.0644	RKS.060.20.0644	VSU 20 0644 N	33 0641 01	HS6-25P1Z
H060.20.0744	060.20.0744.500.01.1503	NB1.20.0744.200-1SPTN	010.20.0744	RKS.060.20.0744	VSU 20 0744 N	33 0741 01	HS6-29P1Z
H060.20.0844	060.20.0844.500.01.1503	NB1.20.0844.200-1SPTN	010.20.0844	RKS.060.20.0844	VSU 20 0844 N	33 0841 01	HS6-33P1Z
H060.20.0944	060.20.0944.500.01.1503	NB1.20.0944.200-1SPTN	010.20.0944	RKS.060.20.0944	VSU 20 0944 N	33 0941 01	HS6-37P1Z
H060.20.1094	060.20.1094.500.01.1503	NB1.20.1094.200-1SPTN	010.20.1094	RKS.060.20.1094	VSU 20 1094 N	33 1091 01	HS6-43P1Z
H060.25.0455	060.25.0455.500.01.1503	NB1.25.0455.200-1SPTN	010.25.0455	RKS.060.25.0455	VSU 25 0455 N	33 0455 01
H060.25.0555	060.25.0555.500.01.1503	NB1.25.0555.200-1SPTN	010.25.0555	RKS.060.25.0555	VSU 25 0555 N	33 0555 01
H060.25.0655	060.25.0655.500.01.1503	NB1.25.0655.200-1SPTN	010.25.0655	RKS.060.25.0655	VSU 25 0655 N	33 0655 01
H060.25.0755	060.25.0755.500.01.1503	NB1.25.0755.200-1SPTN	010.25.0755	RKS.060.25.0755	VSU 25 0755 N	33 0755 01
H060.25.0855	060.25.0855.500.01.1503	NB1.25.0855.200-1SPTN	010.25.0855	RKS.060.25.0855	VSU 25 0855 N	33 0855 01
H060.25.0955	060.25.0955.500.01.1503	NB1.25.0955.200-1SPTN	010.25.0955	RKS.060.25.0955	VSU 25 0955 N	33 0955 01
H060.25.1055	060.25.1055.500.01.1503	NB1.25.1055.200-1SPTN	010.25.1055	RKS.060.25.1055	VSU 25 1055 N	33 1055 01
H060.25.1155	060.25.1155.500.01.1503	NB1.25.1155.200-1SPTN	010.25.1155	RKS.060.25.1155	VSU 25 1155 N	33 1155 01
H060.25.1255	060.25.1255.500.01.1503	NB1.25.1255.200-1SPTN	010.25.1255	RKS.060.25.1255	VSU 25 1255 N	33 1255 01
H060.25.1355	060.25.1355.500.01.1503	NB1.25.1355.200-1SPTN	010.25.1355	RKS.060.25.1355	VSU 25 1355 N	33 1355 01
H060.25.1455	060.25.1455.500.01.1503	NB1.25.1455.200-1SPTN	010.25.1455	RKS.060.25.1455	VSU 25 1455 N	33 1455 01
H060.25.1204	060.25.1204.500.01.1503	NB1.25.1204.200-1SPTN	010.25.1204
H060.25.1314	060.25.1314.500.01.1503	NB1.25.1314.200-1SPTN	010.25.1314
H060.25.1424	060.25.1424.500.01.1503	NB1.25.1424.200-1SPTN	010.25.1424
H060.25.1534	060.25.1534.500.01.1503	NB1.25.1534.200-1SPTN	010.25.1534
H060.25.1644	060.25.1644.500.01.1503	NB1.25.1644.200-1SPTN	010.25.1644
H060.25.1754	060.25.1754.500.01.1503	NB1.25.1754.200-1SPTN	010.25.1754
H060.25.1904	060.25.1904.500.01.1503	NB1.25.1904.200-1SPTN	010.25.1904
H060.50.1900	060.50.1900.500.01.1503	NB1.50.1900.200-1SPTN	010.50.1900
H060.50.2130	060.50.2130.500.01.1503	NB1.50.2130.200-1SPTN	010.50.2130

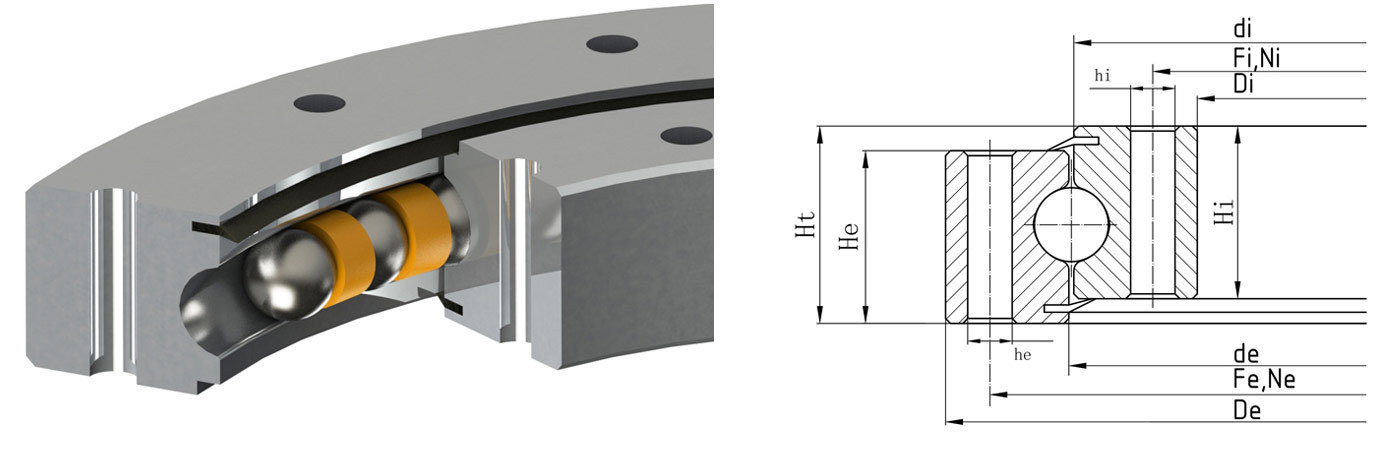

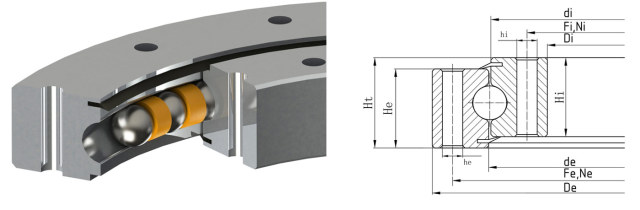

Model	Dimensions							Installation size						Weight
	De	de	di	Di	He	Hi	Ht	Fe	Ne	he	Fi	Ni	hi
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[-]	[mm]	[mm]	[-]	[mm]	[kg]
CNB1.12.0181	234	182	180	125	25	25	25	214	24	11	144.5	20	11	5
CNB1.19.0217	290	218	216	150	41.5	40	41.5	265	16	14	175	16	M12	14
CNB1.20.0260	329	261	259	190	44	44	45	305	16	14	215	16	14	17
CNB1.20.0314	386	315.5	312.5	242	45.5	45.5	56	360	20	14	268	20	14	21
CNB1.20.0414	486	415.5	412.5	342	45.5	45.5	56	460	24	14	368	24	14	29
CNB1.20.0544	616	545.5	542.5	472	45.5	45.5	56	590	32	14	498	32	14	37
CNB1.20.0644	716	645.5	642.5	572	45.5	45.5	56	690	36	14	598	36	14	44
CNB1.20.0744	816	745.5	742.5	672	45.5	45.5	56	790	40	14	698	40	14	52
CNB1.20.0844	916	845.5	842.5	772	45.5	45.5	56	890	40	14	798	40	14	59
CNB1.20.0944	1016	945.5	942.5	872	45.5	45.5	56	990	44	14	898	44	14	66
CNB1.20.1094	1166	1095.5	1092.5	1022	45.5	45.5	56	1140	48	14	1048	48	14	77
CNB1.25.0455	555	454	456	355	54	54	63	515	18	22	395	18	22	53
CNB1.25.0555	655	554	556	455	54	54	63	615	20	22	495	20	22	65
CNB1.25.0655	755	654	656	555	54	54	63	715	24	22	595	24	22	76
CNB1.25.0755	855	754	756	655	54	54	63	815	24	22	695	24	22	90
CNB1.25.0855	955	854	856	755	54	54	63	915	28	22	795	28	22	101
CNB1.25.0955	1055	954	956	855	54	54	63	1015	30	22	895	30	22	115
CNB1.25.1055	1155	1054	1056	955	54	54	63	1115	30	22	995	30	22	128
CNB1.25.1155	1255	1154	1156	1055	54	54	63	1215	36	22	1095	36	22	139
CNB1.25.1255	1355	1254	1256	1155	54	54	63	1315	42	22	1195	42	22	150
CNB1.25.1355	1455	1354	1356	1255	54	54	63	1415	42	22	1295	42	22	163
CNB1.25.1455	1555	1454	1456	1355	54	54	63	1515	48	22	1395	48	22	174
CNB1.25.1204	1289	1206	1202	1119	58	58	68	1257	45	16	1151	45	16	121
CNB1.25.1314	1399	1316	1312	1229	58	58	68	1367	50	16	1261	50	16	132
CNB1.25.1424	1509	1426	1422	1339	58	58	68	1477	54	16	1371	54	16	143
CNB1.25.1534	1619	1536	1532	1449	58	58	68	1587	60	16	1481	60	16	154
CNB1.25.1644	1752	1646	1642	1536	58	58	68	1708	54	22	1580	54	22	209
CNB1.25.1754	1862	1756	1752	1646	58	58	68	1818	60	22	1690	60	22	222
CNB1.25.1904	2012	1906	1902	1796	58	58	68	1968	64	22	1840	64	22	241
