ARI's SE series slewing drives are suitable for various industries. Featuring a closed housing and lip seals, the SE series slewing drives are applicable to mining equipment, aerial work platforms, cranes, excavator frames, positioners, steering tracking systems, and more.
SE Series Slewing Drives Features:
- Closed design with lip seals
- 360° rotation
- Self-locking function
- Available with dual worm gear design for increased torque
- Can be equipped with electric motors or hydraulic motors

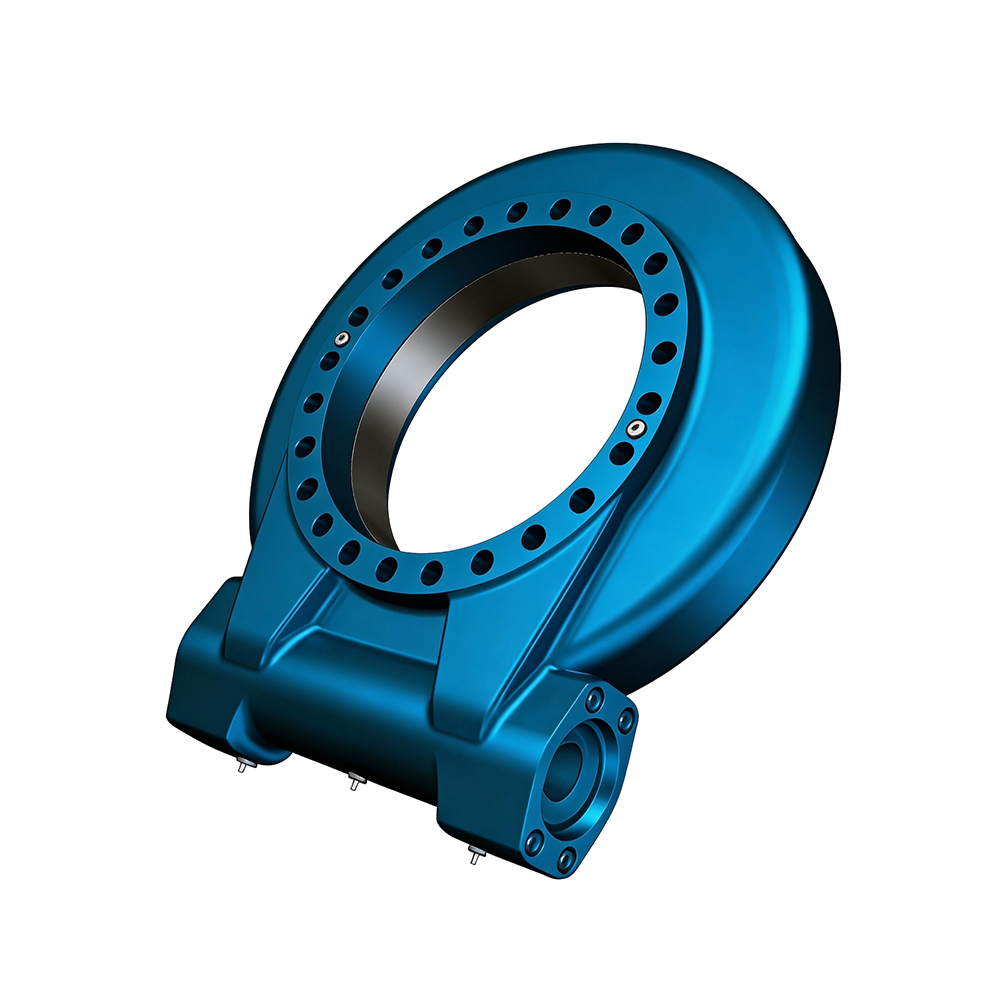

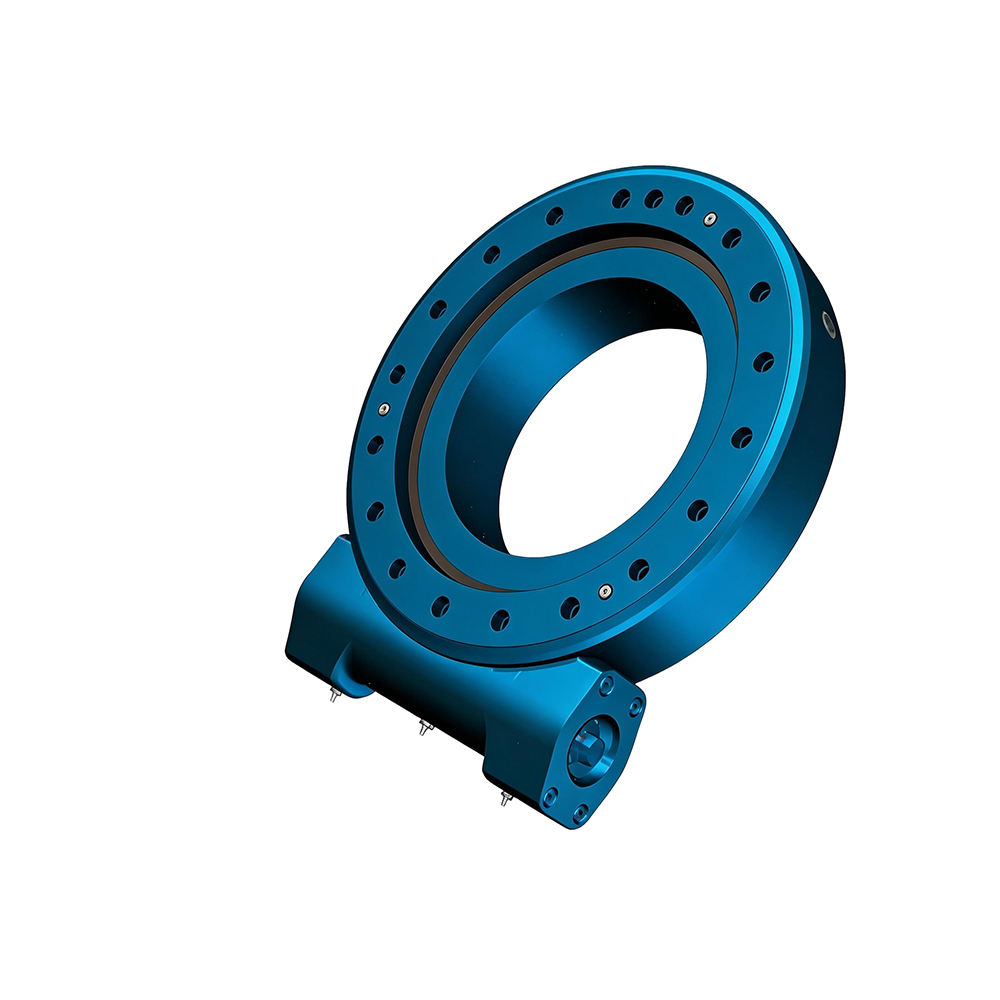

| Slewing Drive Performance Data | |||||||
| Model No. SE14 | |||||||
| Output Torque | Tilting Moment Torque | Holding Torque | Axial Load | Radial Load | Gear Ratio | Precision | Weight |
| 8 KN.M | 67.8 KN.M | 49 KN.M | 555 KN | 222 KN | 85:1 | ≤0.17° | 65 KG |
| 5900 LBF.FT | 50*10³ LBF.FT | 36*10³ LBF.FT | 125*10³ LBF | 50*10³ LBF | |||
| SE Series Slewing Drive Performance Data | ||||||||
| Model No. | Output Torque | Tilting Moment Torque | Holding Torque | Axial Load | Radial Load | Gear Ratio | Precision | Weight |
| SE5 | 0.600 KN.M | 3.0 KN.M | 5.5 KN.M | 45 KN | 22 KN | 62:1 | ≤0.2° | 16 KG |
| 443 LBF.FT | 2212.5 LBF.FT | 4056 LBF.FT | 1116 LBF | 4945 LBF | ||||
| SE7 | 1.5 KN.M | 13.5 KN.M | 10.6 KN.M | 135 KN | 53KN | 73:1 | ≤0.2° | 24 KG |
| 1107 LBF.FT | 9957 LBF.FT | 7822 LBF.FT | 30348 LBF | 11915 LBF | ||||
| SE9 | 6.5 KN.M | 33.9 KN.M | 40.0 KN.M | 340 KN | 1380KN | 61:1 | ≤0.17° | 49 KG |
| 4794 LBF.FT | 25*10³ LBF.FT | 29.5*10³ LBF.FT | 76.4*10³ LBF | 31*10³ LBF | ||||
| SE12 | 7.5 KN.M | 54.3 KN.M | 45 KN.M | 475 KN | 190 KN | 78:1 | ≤0.17° | 60 KG |
| 5532 LBF.FT | 40*10³ LBF.FT | 33.2*10³ LBF.FT | 106.8*10³ LBF | 42.7*10³ LBF | ||||
| SE14 | 8 KN.M | 67.8 KN.M | 49 KN.M | 555 KN | 222 KN | 85:1 | ≤0.17° | 65 KG |
| 5900 LBF.FT | 50*10³ LBF.FT | 36*10³ LBF.FT | 125*10³ LBF | 50*10³ LBF | ||||
| SE17 | 10 KN.M | 135.6 KN.M | 73 KN.M | 980 KN | 400 KN | 102:1 | ≤0.15° | 106 KG |
| 7400 LBF.FT | 100*10³ LBF.FT | 53.9*10³ LBF.FT | 220*10³ LBF | 89.9*10³ LBF | ||||
| SE21 | 15 KN.M | 203 KN.M | 106 KN.M | 1600 KN | 650 KN | 125:1 | ≤0.15° | 150 KG |
| 11000 LBF.FT | 150*10³ LBF.FT | 78.2*10³ LBF.FT | 359.7*10³ LBF | 146.1*10³ LBF | ||||
| SE25 | 18 KN.M | 271 KN.M | 159 KN.M | 2400 KN | 950 KN | 150:1 | ≤0.15° | 205 KG |
| 13300 LBF.FT | 200*10³ LBF.FT | 117.3*10³ LBF.FT | 539.5*10³ LBF | 213.6*10³ LBF | ||||
| S9 | 8 KN.M | 35.6 KN.M | 39.8 KN.M | 580 KN | 220 KN | 62:1 | ≤0.15° | 52 KG |
| 5904 LBF.FT | 26.3*10m³ LBF.FT | 29.4*10m³ LBF.FT | 130.3*10m³ LBF | 49.4*10m³ LBF | ||||
| W17 | 13 KN.M | 432 KN.M | 58 KN.M | 1160 KN | 435 KN | 104:1 | ≤0.1° | 82 KG |
| 9564 LBF.FT | 105*10³ LBF.FT | 42.8*10³ LBF.FT | 262*10³ LBF | 97.8*10³ LBF | ||||
