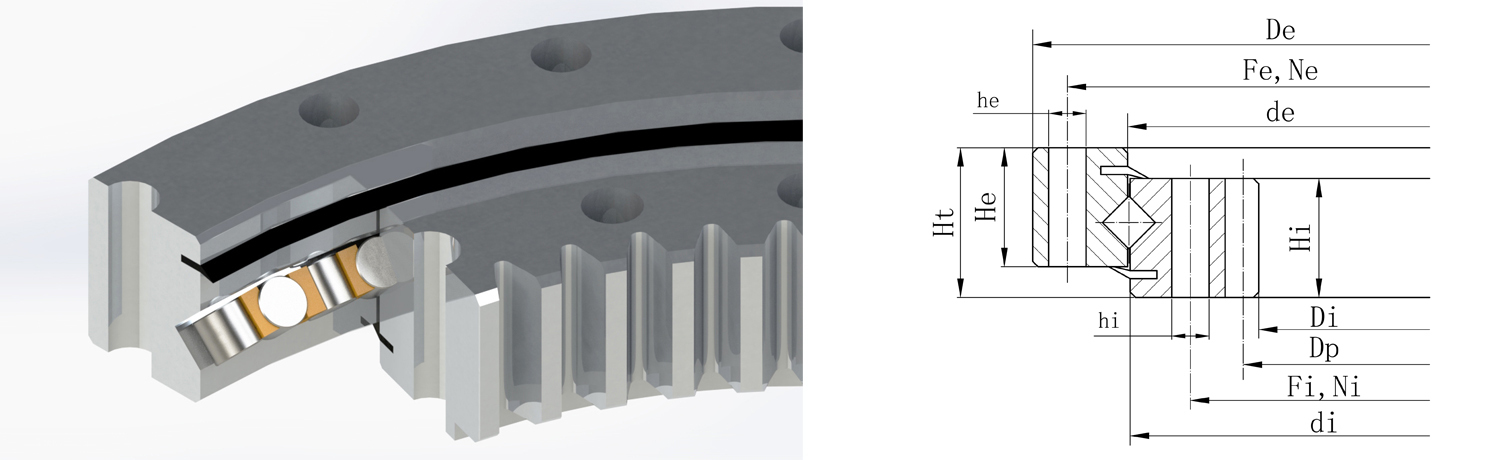

Single-row crossed roller slewing rings employ a single row of crossed cylindrical rollers arranged at 90° angles. This design allows the crossed roller slewing rings to simultaneously withstand axial, radial, and overturning moment loads. Its compact structure and high rotational accuracy make it widely used in fields with stringent space and precision requirements, such as industrial robots, medical equipment, precision rotary tables, engineering machinery, and military products.
| Honza | INA | ISB | SKF | ROLLIX |
| HXSI 140414 | XSI 14 0414 N | ZR1.14.0414.200-1SPTN | RKS.162.14.0414 | 07 0414 00 |
| HXSI 140544 | XSI 14 0544 N | ZR1.14.0544.200-1SPTN | RKS.162.14.0544 | 07 0544 00 |
| HXSI 140644 | XSI 14 0644 N | ZR1.14.0644.200-1SPTN | RKS.162.14.0644 | 07 0644 00 |
| HXSI 140744 | XSI 14 0744 N | ZR1.14.0744.200-1SPTN | RKS.162.14.0744 | 07 0744 00 |
| HXSI 140844 | XSI 14 0844 N | ZR1.14.0844.200-1SPTN | RKS.162.14.0844 | 07 0844 00 |
| HXSI 140944 | XSI 14 0944 N | ZR1.14.0944.200-1SPTN | RKS.162.14.0944 | 07 0944 00 |
| HXSI 141094 | XSI 14 1094 N | ZR1.14.1094.200-1SPTN | RKS.162.14.1094 | 07 1094 00 |
| HXSI 161204 | XSI 16 1204 N | ZR1.16.1204.200-1SPTN | RKS.162.16.1204 | 07 1204 00 |
| HXSI 161314 | XSI 16 1314 N | ZR1.16.1314.200-1SPTN | RKS.162.16.1314 | 07 1314 00 |
| HXSI 161424 | XSI 16 1424 N | ZR1.16.1424.200-1SPTN | RKS.162.16.1424 | 07 1424 00 |
| HXSI 161534 | XSI 16 1534 N | ZR1.16.1534.200-1SPTN | RKS.162.16.1534 | 07 1534 00 |
| HXSI 161644 | XSI 16 1644 N | ZR1.16.1644.200-1SPTN | RKS.162.16.1644 | 07 1644 00 |
| HXSI 161754 | XSI 16 1754 N | ZR1.16.1754.200-1SPTN | RKS.162.16.1754 | 07 1754 00 |
| HXSI 201904 | XSI 20 1904 N | ZR1.20.1904.200-1SPTN | RKS.162.20.1904 | 07 1904 00 |
| HXSI 160380 | XSI 16 0380 N | ZR1.16.0380.200-1SPTN | RKS.162.16.0380 | 07 0380 00 |
| HXSI 200489 | XSI 20 0489 N | ZR1.20.0489.200-1SPTN | RKS.162.20.0489 | 07 0489 00 |
| HXSI 200573 | XSI 20 0573 N | ZR1.20.0573.200-1SPTN | RKS.162.20.0573 | 07 0573 00 |
| HXSI 250673 | XSI 25 0673 N | ZR1.25.0673.200-1SPTN | RKS.162.25.0673 | 07 0673 00 |
| HXSI 250714 | XSI 25 0714 N | ZR1.25.0714.200-1SPTN | RKS.162.25.0714 | 07 0714 00 |
| HXSI 250770 | XSI 25 0770 N | ZR1.25.0770.200-1SPTN | RKS.162.25.0770 | 07 0770 00 |
| HXSI 250849 | XSI 25 0849 N | ZR1.25.0849.200-1SPTN | RKS.162.25.0849 | 07 0849 00 |
| HXSI 250946 | XSI 25 0946 N | ZR1.25.0946.200-1SPTN | RKS.162.25.0946 | 07 0946 00 |
| HXSI 251050 | XSI 25 1050 N | ZR1.25.1050.200-1SPTN | RKS.162.25.1050 | 07 1050 00 |
| HXSI 301140 | XSI 30 1140 N | ZR1.30.1140.200-1SPTN | RKS.162.30.1140 | 07 1140 00 |
| HXSI 301304 | XSI 30 1304 N | ZR1.30.1304.200-1SPTN | RKS.162.30.1304 | 07 1304 00 |
| HXSI 401385 | XSI 40 1385 N | ZR1.40.1385.200-1SPTN | RKS.162.40.1385 | 07 1385 00 |
| HXSI 451606 | XSI 45 1606 N | ZR1.45.1606.200-1SPTN | RKS.162.45.1606 | 07 1606 00 |
| HXSI 451830 | XSI 45 1830 N | ZR1.45.1830.200-1SPTN | RKS.162.45.1830 | 07 1830 00 |
| HXSI 501997 | XSI 50 1997 N | ZR1.50.1997.200-1SPTN | RKS.162.50.1997 | 07 1997 00 |
| HXSI 502400 | XSI 50 2400 N | ZR1.50.2400.200-1SPTN | RKS.162.50.2400 | 07 2400 00 |
| HXSI 502810 | XSI 50 2810 N | ZR1.50.2810.200-1SPTN | RKS.162.50.2810 | 07 2810 00 |
| Model | Dimensions | Installation size | Tooth Data | Load | Weight | ||||||||||||||
| De | de | di | Di | He | Hi | Ht | Fe | Ne | he | Fi | Ni | hi | m | Z | x·m | Dp | |||
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [-] | [mm] | [-] | [mm] | [-] | – | [mm] | [kN] | [kg] | |||
| BR1.14.0414 | 484 | 415 | 411 | 325 | 44.5 | 44.5 | 56 | 460 | 24 | 14 | 375 | 24 | M12 | 5 | 67 | – | 335 | 26.2 | 31 |
| BR1.14.0544 | 614 | 545 | 541 | 444 | 44.5 | 44.5 | 56 | 590 | 32 | 14 | 505 | 32 | M12 | 6 | 76 | – | 456 | 35 | 43 |
| BR1.14.0644 | 714 | 645 | 641 | 546 | 44.5 | 44.5 | 56 | 690 | 36 | 14 | 605 | 36 | M12 | 6 | 93 | – | 558 | 35 | 50 |
| BR1.14.0744 | 814 | 745 | 741 | 648 | 44.5 | 44.5 | 56 | 790 | 40 | 14 | 705 | 40 | M12 | 6 | 110 | – | 660 | 35 | 58 |
| BR1.14.0844 | 914 | 845 | 841 | 736 | 44.5 | 44.5 | 56 | 890 | 40 | 14 | 805 | 40 | M12 | 8 | 94 | – | 752 | 46.7 | 69 |
| BR1.14.0944 | 1014 | 945 | 941 | 840 | 44.5 | 44.5 | 56 | 990 | 44 | 14 | 905 | 44 | M12 | 8 | 107 | – | 856 | 46.7 | 76 |
| BR1.14.1094 | 1164 | 1095 | 1091 | 984 | 44.5 | 44.5 | 56 | 1140 | 48 | 14 | 1055 | 48 | M12 | 8 | 125 | – | 1000 | 46.7 | 91 |
| BR1.16.1204 | 1289 | 1206 | 1202 | 1072 | 58 | 58 | 68 | 1257 | 45 | 16 | 1151 | 45 | 16 | 10 | 108 | – | 1080 | 96.67 | 148 |
| BR1.16.1314 | 1399 | 1316 | 1312 | 1182 | 58 | 58 | 68 | 1367 | 50 | 16 | 1261 | 50 | 16 | 10 | 119 | – | 1190 | 96.67 | 161 |
| BR1.16.1424 | 1509 | 1426 | 1422 | 1292 | 58 | 58 | 68 | 1477 | 54 | 16 | 1371 | 54 | 16 | 10 | 130 | – | 1300 | 96.67 | 175 |
| BR1.16.1534 | 1619 | 1536 | 1532 | 1402 | 58 | 58 | 68 | 1587 | 60 | 16 | 1481 | 60 | 16 | 10 | 141 | – | 1410 | 96.67 | 189 |
| BR1.16.1644 | 1752 | 1646 | 1642 | 1495 | 58 | 58 | 68 | 1708 | 54 | 22 | 1580 | 54 | 22 | 10 | 150 | – | 1500 | 96.67 | 239 |
| BR1.16.1754 | 1862 | 1756 | 1752 | 1605 | 58 | 58 | 68 | 1818 | 60 | 22 | 1690 | 60 | 22 | 10 | 161 | – | 1610 | 96.67 | 256 |
| BR1.20.1904 | 2012 | 1906 | 1902 | 1729 | 58 | 58 | 68 | 1968 | 64 | 22 | 1840 | 64 | 22 | 14 | 124 | – | 1736 | 135.33 | 304 |
| BR1.16.0380 | 451 | 381 | 379 | 291 | 45 | 45 | 55 | 425 | 24 | 13.5 | 335 | 24 | 13.5 | 5 | 60 | – | 300 | – | 28 |
| BR1.20.0489 | 562 | 490.5 | 487.5 | 385 | 50 | 50 | 60 | 538 | 30 | 14 | 440 | 30 | 14 | 6 | 66 | – | 396 | – | 44 |
| BR1.20.0573 | 665 | 574.5 | 571.5 | 457 | 50 | 50 | 60 | 630 | 28 | 17.5 | 518 | 28 | 17.5 | 6 | 77 | -3 | 468 | – | 62 |
| BR1.25.0673 | 771 | 674.5 | 671.5 | 541 | 60 | 60 | 70 | 736 | 32 | 17.5 | 610 | 32 | 17.5 | 6 | 91 | -3 | 552 | – | 96 |
| BR1.25.0714 | 825 | 715.5 | 712.5 | 567.5 | 62 | 78 | 90 | 785 | 26 | 18 | 640 | 20 | 18 | 7 | 82 | – | 581 | – | 135 |
| BR1.25.0770 | 871 | 771.5 | 768.5 | 634 | 60 | 60 | 70 | 833 | 36 | 17.5 | 707 | 36 | 17.5 | 8 | 80 | -4 | 648 | – | 112 |
| BR1.25.0849 | 960 | 850.5 | 847.5 | 706 | 65 | 65 | 70 | 914 | 30 | 22 | 784 | 30 | 22 | 8 | 89 | -4 | 720 | – | 14.4 |
| BR1.25.0946 | 1066 | 947.5 | 944.5 | 785 | 65 | 75 | 85 | 1015 | 36 | 22 | 880 | 36 | 22 | 10 | 79 | -6.52 | 803.04 | – | 190 |
| BR1.25.1050 | 1170 | 1052 | 1048 | 882 | 80 | 88 | 98 | 1125 | 40 | 22 | 975 | 40 | 22 | 10 | 89 | – | 900 | – | 258 |
| BR1.30.1140 | 1251 | 1143 | 1138 | 979 | 75 | 75 | 91 | 1212 | 40 | 22 | 1068 | 40 | 22 | 10 | 99 | -3.2 | 996.4 | – | 239 |
| BR1.30.1304 | 1431 | 1306 | 1302 | 1132 | 82 | 85 | 97 | 1380 | 48 | 22 | 1228 | 48 | 22 | 10 | 115 | – | 1150 | – | 323 |
| BR1.40.1385 | 1530 | 1387 | 1383 | 1178 | 107 | 107 | 130 | 1480 | 36 | 26 | 1290 | 36 | 26 | 12 | 100 | – | 1200 | – | 541 |
| BR1.45.1606 | 1770 | 1608 | 1604 | 1375 | 125 | 125 | 150 | 1710 | 48 | 30 | 1500 | 48 | 30 | 14 | 100 | – | 1400 | – | 802 |
| BR1.45.1830 | 2002 | 1832 | 1828 | 1595 | 125 | 125 | 150 | 1940 | 54 | 30 | 1720 | 54 | 30 | 14 | 115 | -4.9 | 1619.8 | – | 951 |
| BR1.50.1997 | 2190 | 1999 | 1995 | 1731 | 127 | 132 | 144 | 2130 | 72 | 30 | 1880 | 72 | 30 | 16 | 109 | -8 | 1760 | – | 1199 |
| BR1.50.2400 | 2590 | 2402 | 2398 | 2110 | 135 | 145 | 160 | 2520 | 80 | 30 | 2280 | 80 | 30 | 18 | 118 | -9 | 2142 | – | 1626 |
| BR1.50.2810 | 3020 | 2812 | 2808 | 2495 | 140 | 148 | 158 | 2950 | 72 | 36 | 2670 | 72 | 36 | 20 | 126 | -6 | 2532 | – | 2154 |
