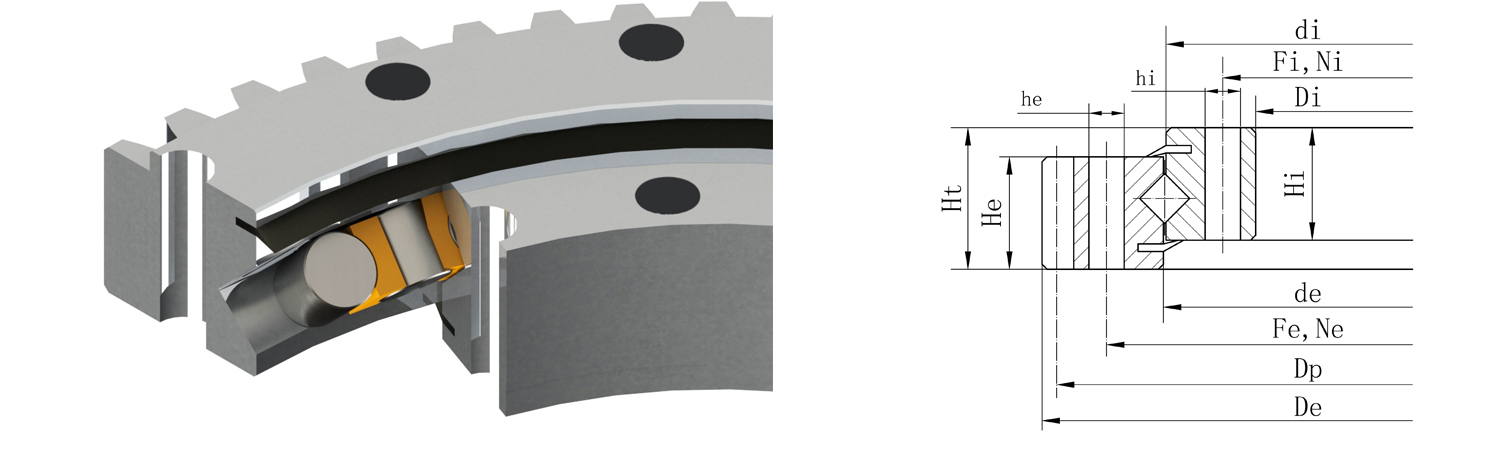

Single-row crossed roller slewing rings employ a single row of crossed cylindrical rollers arranged at 90° angles. This design allows the crossed roller slewing rings to simultaneously withstand axial, radial, and overturning moment loads. Its compact structure and high rotational accuracy make it widely used in fields with stringent space and precision requirements, such as industrial robots, medical equipment, precision rotary tables, engineering machinery, and military products.
| Honza | INA | ISB | SKF | ROLLIX |
| HXSA 140414 | XSA 14 0414 N | ER1.16.0416.200-1STPN | RKS.161.16.0414 | 06 0416 00 |
| HXSA 140544 | XSA 14 0544 N | ER1.16.0544.200-1STPN | RKS.161.16.0544 | 06 0544 00 |
| HXSA 140644 | XSA 14 0644 N | ER1.16.0644.200-1STPN | RKS.161.16.0644 | 06 0644 00 |
| HXSA 140744 | XSA 14 0744 N | ER1.16.0744.200-1STPN | RKS.161.16.0744 | 06 0744 00 |
| HXSA 140844 | XSA 14 0844 N | ER1.16.0844.200-1STPN | RKS.161.16.0844 | 06 0844 00 |
| HXSA 140944 | XSA 14 0944 N | ER1.16.0944.200-1STPN | RKS.161.16.0944 | 06 0944 00 |
| HXSA 141044 | XSA 14 0044 N | ER1.16.1094.200-1STPN | RKS.161.16.1094 | 06 1094 00 |
| HXSA 161204 | XSA 16 0204 N | ER1.16.1204.200-2STPN | RKS.161.16.1204 | 06 1204 00 |
| HXSA 161314 | XSA 16 0314 N | ER1.16.1316.200-2STPN | RKS.161.16.1316 | 06 1316 00 |
| HXSA 161424 | XSA 16 0424 N | ER1.16.1424.200-2STPN | RKS.161.16.1424 | 06 1424 00 |
| HXSA 161534 | XSA 16 0534 N | ER1.16.1534.200-2STPN | RKS.161.16.1534 | 06 1534 00 |
| HXSA 161644 | XSA 16 0644 N | ER1.16.1644.200-2STPN | RKS.161.16.1644 | 06 1644 00 |
| HXSA 161754 | XSA 16 0754 N | ER1.16.1754.200-2STPN | RKS.161.16.1754 | 06 1754 00 |
| HXSA 201904 | XSA 20 1904 N | ER1.20.1904.200-2STPN | RKS.161.20.1904 | 06 1904 00 |
| HXSA 200307 | XSA 20 0307 N | ER1.20.0307.200-2STPN | RKS.161.20.0307 | 06 0307 00 |
| HXSA 250400 | XSA 25 0400 N | ER1.25.0400.200-2STPN | RKS.161.25.0400 | 06 0400 00 |
| HXSA 250475 | XSA 25 0475 N | ER1.25.0475.200-2STPN | RKS.161.25.0475 | 06 0475 00 |
| HXSA 300508 | XSA 30 0508 N | ER1.30.0508.200-2STPN | RKS.161.30.0508 | 06 0508 00 |
| HXSA 250574 | XSA 25 0574 N | ER1.25.0574.200-2STPN | RKS.161.25.0574 | 06 0574 00 |
| HXSA 250675 | XSA 25 0675 N | ER1.25.0675.200-2STPN | RKS.161.25.0675 | 06 0675 00 |
| HXSA 250734 | XSA 25 0734 N | ER1.25.0734.200-2STPN | RKS.161.25.0734 | 06 0734 00 |
| HXSA 300823 | XSA 30 0823 N | ER1.30.0823.200-2STPN | RKS.161.30.0823 | 06 0823 00 |
| HXSA 300980 | XSA 30 0980 N | ER1.30.0980.200-2STPN | RKS.161.30.0980 | 06 0980 00 |
| HXSA 361116 | XSA 36 1116 N | ER1.36.1116.200-2STPN | RKS.161.36.1116 | 06 1116 00 |
| HXSA 361250 | XSA 36 1250 N | ER1.36.1250.200-2STPN | RKS.161.36.1250 | 06 1250 00 |
| HXSA 451390 | XSA 45 1390 N | ER1.45.1390.200-2STPN | RKS.161.45.1390 | 06 1390 00 |
| HXSA 451595 | XSA 45 1595 N | ER1.45.1595.200-2STPN | RKS.161.45.1595 | 06 1595 00 |
| HXSA 451790 | XSA 45 1790 N | ER1.45.1790.200-2STPN | RKS.161.45.1790 | 06 1790 00 |
| HXSA 502002 | XSA 50 2002 N | ER1.50.2002.200-2STPN | RKS.161.50.2002 | 06 2002 00 |
| HXSA 502242 | XSA 50 2242 N | ER1.50.2242.200-2STPN | RKS.161.50.2242 | 06 2242 00 |
| HXSA 502500 | XSA 50 2500 N | ER1.50.2500.200-2STPN | RKS.161.50.2500 | 06 2500 00 |
| HXSA 502810 | XSA 50 2810 N | ER1.50.2810.200-2STPN | RKS.161.50.2810 | 06 2810 00 |
| Model | Dimensions | Installation Size | Tooth Data | Load | Weight | ||||||||||||||
| De | de | di | Di | He | Hi | Ht | Fe | Ne | he | Fi | Ni | hi | m | Z | x·m | Dp | |||
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [-] | [mm] | [-] | [mm] | [-] | [mm] | [mm] | [kN] | [kg] | |||
| AR1.16.0416 | 503.3 | 417 | 413 | 342 | 44.5 | 44.5 | 56 | 455 | 20 | M12 | 368 | 24 | 14 | 5 | 99 | – | 495 | 30.26 | 32 |
| AR1.16.0544 | 640.3 | 547 | 543 | 472 | 44.5 | 44.5 | 56 | 585 | 28 | M12 | 498 | 32 | 14 | 6 | 105 | – | 630 | 36.31 | 43 |
| AR1.16.0644 | 742.3 | 647 | 643 | 572 | 44.5 | 44.5 | 56 | 685 | 32 | M12 | 598 | 36 | 14 | 6 | 122 | – | 732 | 36.31 | 52 |
| AR1.16.0744 | 838.1 | 747 | 743 | 672 | 44.5 | 44.5 | 56 | 785 | 36 | M12 | 698 | 40 | 14 | 6 | 138 | – | 828 | 36.31 | 58 |
| AR1.16.0844 | 950.1 | 847 | 843 | 772 | 44.5 | 44.5 | 56 | 885 | 36 | M12 | 798 | 40 | 14 | 8 | 117 | – | 936 | 48.42 | 71 |
| AR1.16.0944 | 1046.1 | 947 | 943 | 872 | 44.5 | 44.5 | 56 | 985 | 40 | M12 | 898 | 44 | 14 | 8 | 129 | – | 1032 | 48.42 | 77 |
| AR1.16.1094 | 1198.1 | 1097 | 1093 | 1022 | 44.5 | 44.5 | 56 | 1135 | 44 | M12 | 1048 | 48 | 14 | 8 | 148 | – | 1184 | 48.42 | 90 |
| AR1.16.1204 | 1338 | 1206 | 1202 | 1119 | 58 | 58 | 68 | 1257 | 45 | 16 | 1151 | 45 | 16 | 10 | 131 | – | 1310 | 92.8 | 154 |
| AR1.16.1316 | 1448 | 1316 | 1312 | 1229 | 58 | 58 | 68 | 1367 | 50 | 16 | 1261 | 50 | 16 | 10 | 142 | – | 1420 | 92.8 | 168 |
| AR1.16.1424 | 1558 | 1426 | 1422 | 1339 | 58 | 58 | 68 | 1477 | 54 | 16 | 1371 | 54 | 16 | 10 | 153 | – | 1530 | 92.8 | 182 |
| AR1.16.1534 | 1668 | 1536 | 1532 | 1449 | 58 | 58 | 68 | 1587 | 60 | 16 | 1481 | 60 | 16 | 10 | 164 | – | 1640 | 92.8 | 195 |
| AR1.16.1644 | 1791 | 1646 | 1642 | 1536 | 58 | 58 | 68 | 1708 | 54 | 22 | 1580 | 54 | 22 | 10 | 176 | – | 1760 | 92.8 | 242 |
| AR1.16.1754 | 1901 | 1756 | 1752 | 1646 | 58 | 58 | 68 | 1818 | 60 | 22 | 1690 | 60 | 22 | 10 | 187 | – | 1870 | 92.8 | 258 |
| AR1.20.1904 | 2073.4 | 1906 | 1902 | 1796 | 58 | 58 | 68 | 1968 | 64 | 22 | 1840 | 64 | 22 | 14 | 145 | – | 2030 | 129.92 | 306 |
| AR1.20.0307 | 403.5 | 308 | 306 | 234 | 47 | 45 | 55 | 358 | 24 | 13 | 259 | 28-1 | 13 | 4.5 | 88 | – | 396 | 15.12 | 24 |
| AR1.25.0400 | 535 | 401.5 | 398.5 | 305 | 63 | 63 | 75 | 466 | 18 | 20 | 336 | 18 | 20 | 8 | 65 | – | 520 | 35.2 | 61 |
| AR1.25.0475 | 589 | 476.5 | 473.5 | 383 | 63 | 63 | 75 | 540 | 18 | 20 | 410 | 18 | 20 | 5 | 116 | – | 580 | 22 | 63 |
| AR1.30.0508 | 654 | 509.5 | 506.5 | 391 | 73 | 73 | 85 | 582 | 30 | 22 | 432 | 30-1 | 22 | 8 | 80 | – | 640 | 38.44 | 97 |
| AR1.25.0574 | 700 | 575.5 | 572.5 | 479 | 64 | 64 | 77 | 640 | 36 | 18 | 508 | 36-1 | 18 | 6 | 114 | 3 | 690 | 34.78 | 82 |
| AR1.25.0675 | 816 | 676.5 | 673.5 | 573 | 73 | 70 | 90 | 753 | 18 | 22 | 604 | 18 | 22 | 6 | 132 | 6.552 | 805.1 | 37.68 | 124 |
| AR1.25.0734 | 886 | 735.5 | 732.5 | 614 | 75 | 70 | 85 | 810 | 30 | 22 | 658 | 30 | 22 | 8 | 108 | 4 | 872 | 57.97 | 155 |
| AR1.30.0823 | 979 | 824.5 | 821.5 | 717 | 79 | 82 | 100 | 893 | 36 | 22 | 753 | 36-1 | 22 | 10 | 94 | 11 | 962 | 62.8 | 178 |
| AR1.30.0980 | 1144 | 981.5 | 978.5 | 869 | 79 | 84 | 100 | 1050 | 36 | 22 | 910 | 36 | 22 | 10 | 111 | 8 | 1126 | 64.73 | 228 |
| AR1.36.1116 | 1289.5 | 1118 | 1114 | 984 | 90 | 94 | 114 | 1198 | 40 | 22 | 1035 | 40 | 22 | 10 | 125 | 10.5 | 1271 | 75.4 | 335 |
| AR1.36.1250 | 1476 | 1252 | 1248 | 1079 | 91 | 100 | 110 | 1350 | 40 | 26 | 1150 | 40 | 26 | 10 | 144 | 8.6 | 1457.2 | 75.4 | 505 |
| AR1.45.1390 | 1604 | 1392 | 1388 | 1204 | 112 | 116 | 130 | 1500 | 48 | 30 | 1280 | 48 | 30 | 10 | 157 | 7.5 | 1585 | 87 | 620 |
| AR1.45.1595 | 1836 | 1597 | 1593 | 1436 | 120 | 115 | 135 | 1700 | 45 | 30 | 1485 | 45 | 30 | 16 | 112 | 8 | 1808 | 185.5 | 791 |
| AR1.45.1790 | 2027 | 1792 | 1788 | 1616 | 130 | 128 | 150 | 1905 | 48 | 30 | 1675 | 48 | 30 | 14 | 142 | 7 | 2002 | 175.8 | 1004 |
| AR1.502.2002 | 2267 | 2004 | 2000 | 1821 | 129 | 119 | 140 | 2124 | 72 | 30 | 1880 | 72 | 30 | 16 | 139 | 8 | 2240 | 199.4 | 1174 |
| AR1.50.2242 | 2534 | 2244 | 2240 | 2048 | 132 | 122 | 144 | 2373 | 60 | 33 | 2112 | 60 | 33 | 18 | 138 | 9 | 2502 | 229.6 | 1482 |
| AR1.50.2500 | 2790 | 2502 | 2498 | 2296 | 148 | 142 | 164 | 2640 | 72 | 33 | 2360 | 72 | 33 | 18 | 151 | 19.8 | 2757.6 | 257.4 | 1895 |
| AR1.50.2810 | 3116 | 2812 | 2808 | 2606 | 148 | 142 | 164 | 2950 | 80 | 33 | 2670 | 80 | 33 | 20 | 152 | 20 | 3080 | 286 | 2200 |
