Single-row crossed roller slewing rings employ a single row of crossed cylindrical rollers arranged at 90° angles. This design allows the crossed roller slewing rings to simultaneously withstand axial, radial, and overturning moment loads. Its compact structure and high rotational accuracy make it widely used in fields with stringent space and precision requirements, such as industrial robots, medical equipment, precision rotary tables, engineering machinery, and military products.

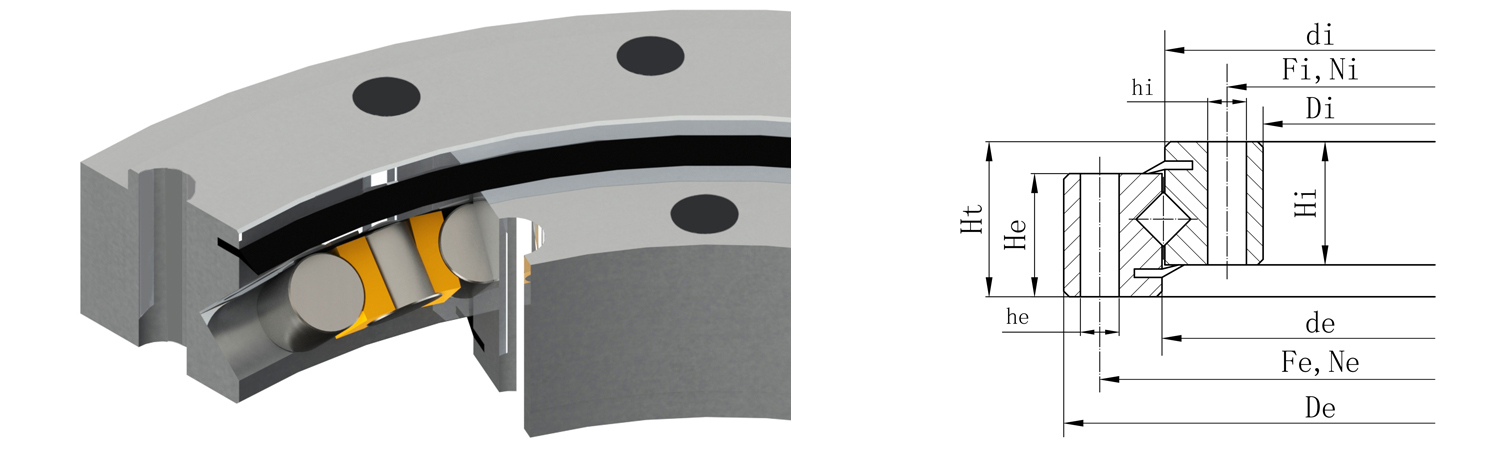

| Model | Dimensions | Installation Size | Weight | |||||||||||
| De | de | di | Di | He | Hi | Ht | Fe | Ne | he | Fi | Ni | hi | ||
| [mm] | [mm] | [mm] | [-] | [mm] | [mm] | [mm] | [mm] | [-] | [mm] | [-] | [kg] | |||
| CR1.14.0220 | 300 | 221 | 219 | 140 | 44 | 44 | 52 | 270 | 12 | 18 | 170 | 12 | 18 | 16 |
| CR1.14.0270 | 350 | 271 | 269 | 190 | 44 | 44 | 52 | 320 | 16 | 18 | 220 | 16 | 18 | 20 |
| CR1.20.0307 | 403.5 | 308 | 306 | 234 | 47 | 45 | 55 | 358 | 24 | 13 | 259 | 28 | 13 | 26 |
| CR1.20.0340 | 440 | 341.5 | 338.5 | 240 | 53 | 53 | 60 | 400 | 18 | 22 | 280 | 18 | 22 | 37 |
| CR1.14.0414 | 486 | 415 | 413 | 342 | 44.5 | 44.5 | 56 | 460 | 24 | 14 | 368 | 24 | 14 | 28 |
| CR1.14.0544 | 616 | 545 | 543 | 472 | 44.5 | 44.5 | 56 | 590 | 32 | 14 | 498 | 32 | 14 | 38 |
| CR1.14.0644 | 716 | 645 | 643 | 572 | 44.5 | 44.5 | 56 | 690 | 36 | 14 | 598 | 36 | 14 | 44 |
| CR1.14.0744 | 816 | 745 | 743 | 672 | 44.5 | 44.5 | 56 | 790 | 40 | 14 | 698 | 40 | 14 | 52 |
| CR1.14.0844 | 916 | 845 | 843 | 772 | 44.5 | 44.5 | 56 | 890 | 40 | 14 | 798 | 40 | 14 | 60 |
| CR1.14.0944 | 1016 | 945 | 943 | 872 | 44.5 | 44.5 | 56 | 990 | 44 | 14 | 898 | 44 | 14 | 67 |
| CR1.14.1094 | 1166 | 1095 | 1093 | 1022 | 44.5 | 44.5 | 56 | 1140 | 48 | 14 | 1048 | 48 | 14 | 77 |
| CR1.20.1204 | 1289 | 1206 | 1202 | 1119 | 58 | 58 | 68 | 1257 | 45 | 16 | 1151 | 45 | 16 | 124 |
| CR1.20.1314 | 1399 | 1316 | 1312 | 1229 | 58 | 58 | 68 | 1367 | 50 | 16 | 1261 | 50 | 16 | 135 |
| CR1.20.1424 | 1509 | 1426 | 1422 | 1339 | 58 | 58 | 68 | 1477 | 54 | 16 | 1371 | 54 | 16 | 146 |
| CR1.20.1534 | 1619 | 1536 | 1532 | 1449 | 58 | 58 | 68 | 1587 | 60 | 16 | 1481 | 60 | 16 | 158 |
| CR1.20.1644 | 1752 | 1646 | 1642 | 1536 | 58 | 58 | 68 | 1708 | 54 | 22 | 1580 | 54 | 22 | 214 |
| CR1.20.1754 | 1862 | 1756 | 1752 | 1646 | 58 | 58 | 68 | 1818 | 60 | 22 | 1690 | 60 | 22 | 228 |
| CR1.20.1904 | 2012 | 1906 | 1902 | 1796 | 58 | 58 | 68 | 1968 | 64 | 22 | 1840 | 64 | 22 | 248 |
| HONZA | INA | ISB | SKF | ROLLIX |
| HXSU 160220 | XSU 16 0220 N | NR1.14.0220.200- 2PPN | RKS.160.14.0220 | 03 0220 00 |
| HXSU 160270 | XSU 16 0270 N | NR1.14.0270.200- 2PPN | RKS.160.14.0270 | 03 0270 00 |
| HXSU 200307 | XSU 20 0307 N | NR1.20.0307.400- 2PPN | RKS.160.20.0307 | 03 0307 00 |
| HXSU 200340 | XSU 20 0340 N | NR1.20.0340.400- 2PPN | RKS.160.20.0340 | 03 0340 00 |
| HXSU 140414 | XSU 14 0414 N | NR1.14.0414.200-1PPN | RKS.160.14.0414 | 03 0414 00 |
| HXSU 140544 | XSU 14 0544 N | NR1.14.0544.200-1PPN | RKS.160.14.0544 | 03 0544 00 |
| HXSU 140644 | XSU 14 0644 N | NR1.14.0644.200-1PPN | RKS.160.14.0644 | 03 0644 00 |
| HXSU 140744 | XSU 14 0744 N | NR1.14.0744.200-1PPN | RKS.160.14.0744 | 03 0744 00 |
| HXSU 140844 | XSU 14 0844 N | NR1.14.0844.200-1PPN | RKS.160.14.0844 | 03 0844 00 |
| HXSU 140944 | XSU 14 0944 N | NR1.14.0944.200-1PPN | RKS.160.14.0944 | 03 0944 00 |
| HXSU 141094 | XSU 14 1094 N | NR1.14.1094.200-1PPN | RKS.160.14.1094 | 03 1094 00 |
| HXSU 161204 | XSU 16 1204 N | NR1.20.1204.400-2PPN | RKS.160.20.1204 | 03 1204 00 |
| HXSU 161314 | XSU 16 1314 N | NR1.20.1314.400-2PPN | RKS.160.20.1314 | 03 1314 00 |
| HXSU 161424 | XSU 16 1424 N | NR1.20.1424.400-2PPN | RKS.160.20.1424 | 03 1424 00 |
| HXSU 161534 | XSU 16 1534 N | NR1.20.1534.400-2PPN | RKS.160.20.1534 | 03 1534 00 |
| HXSU 161644 | XSU 16 1644 N | NR1.20.1644.400-2PPN | RKS.160.20.1644 | 03 1644 00 |
| HXSU 161754 | XSU 16 1754 N | NR1.20.1754.400-2PPN | RKS.160.20.1754 | 03 1754 00 |
| HXSU 161904 | XSU 16 1904 N | NR1.20.1904.400-2PPN | RKS.160.20.1904 | 03 1904 00 |
