Three-row roller slewing rings are heavy-duty slewing bearings with a structure comprising three rows of independent rollers, each capable of withstanding enormous axial, radial, and overturning moments. This design offers extremely high rigidity, stability, and service life, and is specifically designed for extreme heavy-duty conditions. It is primarily used in the slewing mechanisms of large port cranes, heavy-duty mining excavators, offshore platforms, radar bases, and large construction machinery.

GET A QUOTE

Add to Quote List View Quote List

Description

	We can provide the interchangeable model
Honza	Rothe Erde	ISB	LYC
H192.25.0500	192.25.0500.990.41.1502	ZR3.25.0500.400-1SPPN	133.25.0500
H192.25.0560	192.25.0560.990.41.1502	ZR3.25.0560.400-1SPPN	133.25.0560
H192.25.0630	192.25.0630.990.41.1502	ZR3.25.0630.400-1SPPN	133.25.0630
H192.25.0710	192.25.0710.990.41.1502	ZR3.25.0710.400-1SPPN	133.25.0710
H192.30.0800	192.30.0800.990.41.1502	ZR3.30.0800.400-1SPPN	133.30.0800
H192.30.0900	192.30.0900.990.41.1502	ZR3.30.0900.400-1SPPN	133.30.0900
H192.30.1000	192.30.1000.990.41.1502	ZR3.30.1000.400-1SPPN	133.30.1000
H192.30.1120	192.30.1120.990.41.1502	ZR3.30.1120.400-1SPPN	133.30.1120
H192.40.1250	192.40.1250.990.41.1502	ZR3.40.1250.400-1SPPN	133.40.1250
H192.40.1400	192.40.1400.990.41.1502	ZR3.40.1400.400-1SPPN	133.40.1400
H192.40.1600	192.40.1600.990.41.1502	ZR3.40.1600.400-1SPPN	133.40.1600
H192.40.1800	192.40.1800.990.41.1502	ZR3.40.1800.400-1SPPN	133.40.1800
H192.45.2000	192.45.2000.990.41.1502	ZR3.45.2000.400-1SPPN	133.45.2000
H192.45.2240	192.45.2240.990.41.1502	ZR3.45.2240.400-1SPPN	133.45.2240
H192.45.2500	192.45.2500.990.41.1502	ZR3.45.2500.400-1SPPN	133.45.2500

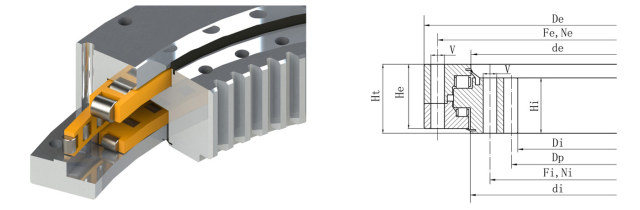

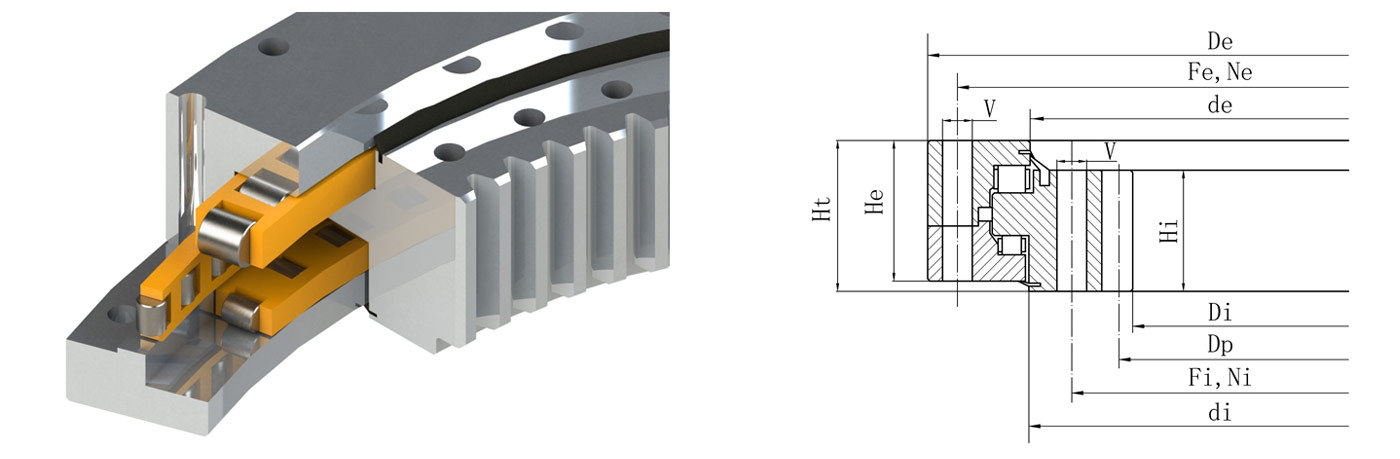

Model	Dimensions							Installation Size						Tooth Data				Load	Weight
	De	de	di	Di	He	Hi	Ht	Fe	Ne	V	Fi	Ni	V	m	z	Dp	x路m
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[-]		[mm]	[-]		[mm]	[-]	[mm]	[mm]	[kN]	[kg]
BZR3.25.0500	634	526	537	335	138	116	148	598	24	18	402	24	18	5	68	340	5	2750	224
BZR3.25.0560	694	586	597	395	138	116	148	658	24	18	462	24	18	5	80	400	5	3080	240
BZR3.25.0630	764	656	667	456	138	116	148	728	28	18	532	28	18	6	77	462	6	3450	270
BZR3.25.0710	844	736	747	534	138	116	148	808	28	18	612	28	18	6	90	540	6	3880	300
BZR3.30.0800	964	759	770	590	172	142	182	920	36	22	680	36	22	10	60	600	10	5490	500
BZR3.30.0900	1064	930	941	688	172	142	182	1020	36	22	780	36	22	8	87	696	8	6190	600
BZR3.30.1000	1164	1030	1041	780	172	142	182	1120	40	22	880	40	22	10	79	790	10	6890	680
BZR3.30.1120	1284	1150	1161	900	172	142	182	1240	40	22	1000	40	22	10	91	910	10	7680	820
BZR3.40.1250	1445	1200	1210	980	210	170	220	1393	45	26	1107	45	26	14	71	994	14	11100	1200
BZR3.40.1400	1595	1350	1360	1134	210	170	220	1543	45	26	1257	45	26	14	80	1150	14	12400	1300
BZR3.40.1600	1795	1550	1560	1328	210	170	220	1743	48	26	1457	48	26	16	84	1344	16	14200	1520
BZR3.40.1800	1995	1750	1760	1520	210	170	220	1943	48	26	1657	48	26	16	96	1536	16	15900	1750
BZR3.45.2000	2221	1945	1967	1692	219	177	231	2155	60	33	1845	60	33	18	95	1710	18	20500	2400
BZR3.45.2240	2461	2273	2295	1920	219	177	231	2395	60	33	2085	60	33	16	121	1936	16	23100	2700
BZR3.45.2500	2721	2533	2555	2178	219	177	231	2655	72	33	2345	72	33	18	122	2196	18	25800	3000
