Three-row roller slewing rings are heavy-duty slewing bearings with a structure comprising three rows of independent rollers, each capable of withstanding enormous axial, radial, and overturning moments. This design offers extremely high rigidity, stability, and service life, and is specifically designed for extreme heavy-duty conditions. It is primarily used in the slewing mechanisms of large port cranes, heavy-duty mining excavators, offshore platforms, radar bases, and large construction machinery.

GET A QUOTE

Add to Quote List View Quote List

Description

Honza	Rothe Erde	ISB	LYC
H191.25.0500	191.25.0500.990.41.1502	ER3.25.0500.400-1SPPN	131.25.0500
H191.25.0560	191.25.0560.990.41.1502	ER3.25.0560.400-1SPPN	131.25.0560
H191.25.0630	191.25.0630.990.41.1502	ER3.25.0630.400-1SPPN	131.25.0630
H191.25.0710	191.25.0710.990.41.1502	ER3.25.0710.400-1SPPN	131.25.0710
H191.30.0800	191.30.0800.990.41.1502	ER3.30.0800.400-1SPPN	131.30.0800
H191.30.0900	191.30.0900.990.41.1502	ER3.30.0900.400-1SPPN	131.30.0900
H191.30.1000	191.30.1000.990.41.1502	ER3.30.1000.400-1SPPN	131.30.1000
H191.30.1120	191.30.1120.990.41.1502	ER3.30.1120.400-1SPPN	131.30.1120
H191.40.1250	191.40.1250.990.41.1502	ER3.40.1250.400-1SPPN	131.40.1250
H191.40.1400	191.40.1400.990.41.1502	ER3.40.1400.400-1SPPN	131.40.1400
H191.40.1600	191.40.1600.990.41.1502	ER3.40.1600.400-1SPPN	131.40.1600
H191.40.1800	191.40.1800.990.41.1502	ER3.40.1800.400-1SPPN	131.40.1800
H191.45.2000	191.45.2000.990.41.1502	ER3.45.2000.400-1SPPN	131.45.2000
H191.45.2240	191.45.2240.990.41.1502	ER3.45.2240.400-1SPPN	131.45.2240
H191.45.2500	191.45.2500.990.41.1502	ER3.45.2500.400-1SPPN	131.45.2500

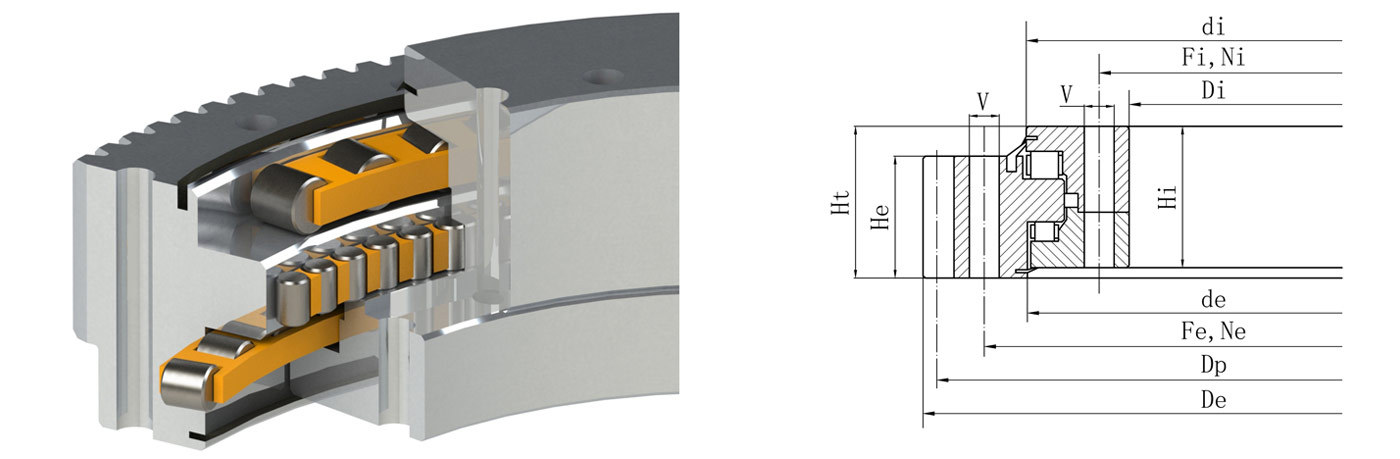

Model	Dimensions							Installation Size						Tooth Data				Load	Weight
	De	de	di	Di	He	Hi	Ht	Fe	Ne	V	Fi	Ni	V	m	z	Dp	x路m
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[-]		[mm]	[-]		[mm]	[-]	[mm]	[mm]	[kN]	[kg]
AER3.25.0500	665	526	537	366	116	138	148	598	24	18	402	24	18	5	130	650	5	2750	224
AER3.25.0560	725	586	597	426	116	138	148	658	24	18	462	24	18	5	142	710	5	3080	240
AER3.25.0630	808	593	604	496	116	138	148	728	28	18	532	28	18	8	98	784	8	3450	270
AER3.25.0710	888	673	684	576	116	138	148	808	28	18	612	28	18	8	108	864	8	3880	300
AER3.30.0800	1008	830	841	636	142	172	182	920	36	22	680	36	22	8	123	984	8	5490	500
AER3.30.0900	1104	930	941	736	142	172	182	1020	36	22	780	36	22	8	135	1080	8	6190	600
AER3.30.1000	1220	1030	1041	836	142	172	182	1120	40	22	880	40	22	10	119	1190	10	6890	680
AER3.30.1120	1340	1150	1161	956	142	172	182	1240	40	22	1000	40	22	10	131	1310	10	7680	820
AER3.40.1250	1512	1200	1210	1055	170	210	220	1393	45	26	1107	45	26	14	105	1470	14	11100	1200
AER3.40.1400	1666	1350	1360	1205	170	210	220	1543	45	26	1257	45	26	14	116	1624	14	12400	1300
AER3.40.1600	1872	1550	1560	1405	170	210	220	1743	48	26	1457	48	26	16	114	1824	16	14200	1520
AER3.40.1800	2072	1840	1850	1605	170	210	220	1943	48	26	1657	48	26	14	145	2030	14	15900	1750
AER3.45.2000	2304	1945	1967	1779	177	219	231	2155	60	33	1845	60	33	18	125	2250	18	20500	2400
AER3.45.2240	2556	2185	2207	2019	177	219	231	2395	60	33	2085	60	33	18	139	2502	18	23100	2700
AER3.45.2500	2820	2445	2467	2279	177	219	231	2655	72	33	2345	72	33	20	138	2760	20	25800	3000
