ARI's WEA series slewing drives feature a modular design, simple structure, and convenient manufacturing and maintenance, with an IP65 protection rating.
The WEA series slewing drives are primarily used in slewing structures of engineering machinery, wind power generation equipment, and heavy-duty marine booms, where high torque transmission and compact structures are required.
| WEA Series Slewing Drive Performance Data | ||||||||
| Model No. | Output Torque | Tilting Moment Torque | Holding Torque | Axial Load | Radial Load | Gear Ratio | Precision | Weight |
| WEA7 | 3.5 KN.M | 14.7 KN.M | 20.6 KN.M | 227 KN | 92.7 KN | 47:1 | ≤0.15° | 35 KG |
| 2583 LBF.FT | 10.8*10m³ LBF.FT | 15.2*10m³ LBF.FT | 51*10m³ LBF | 20.8*10m³ LBF | ||||
| WEA9 | 8 KN.M | 35.6 KN.M | 39.8 KN.M | 580 KN | 220 KN | 62:1 | ≤0.15° | 52 KG |
| 5904 LBF.FT | 26.3*10m³ LBF.FT | 29.4*10m³ LBF.FT | 130.3*10m³ LBF | 49.4*10m³ LBF | ||||
| WEA12 | 9.5 KN.M | 57 KN.M | 44.2 KN.M | 760 KN | 280 KN | 79:1 | ≤0.15° | 67 KG |
| 7011 LBF.FT | 41.2*10m³ LBF.FT | 32.7*10m³ LBF.FT | 171*10m³ LBF | 62.9*10m³ LBF | ||||
| WEA14 | 10.8 KN.M | 71.2 KN.M | 49.5 KN.M | 960 KN | 360 KN | 86:1 | ≤0.13° | 75 KG |
| 7970 LBF.FT | 52.5*10m³ LBF.FT | 36.5*10m³ LBF.FT | 215.8*10m³ LBF | 80.9*10m³ LBF | ||||
| WEA14D | 16.2 KN.M | 71.2 KN.M | 74 KN.M | 956 KN | 363 KN | 86:1 | ≤0.17° | 90 KG |
| 11956 LBF.FT | 62.6*10m³ LBF.FT | 54.5*10m³ LBF.FT | 217*10m³ LBF | 81.6*10m³ LBF | ||||
| WEA17 | 13 KN.M | 142.2 KN.M | 74 KN.M | 1166 KN | 435 KN | 104:1 | ≤0.1° | 97 KG |
| 9564 LBF.FT | 105*10m³ LBF.FT | 54.6*10m³ LBF.FT | 262*10m³ LBF | 97.8*10m³ LBF | ||||
| WEA17D | 19.4 KN.M | 142.4 KN.M | 110 KN.M | 1166 KN | 435 KN | 104:1 | ≤0.15° | 115 KG |
| 14347 LBF.FT | 105*10m³ LBF.FT | 81.2*10m³ LBF.FT | 262*10m³ LBF | 97.8*10m³ LBF | ||||
| WEA19 | 18.5 KN.M | 196 KN.M | 82 KN.M | 1810 KN | 675 KN | 94:1 | ≤0.1° | 120 KG |
| 13640 LBF.FT | 144.5*10m³ LBF.FT | 60.5*10m³ LBF.FT | 406*10m³ LBF | 152*10m³ LBF | ||||
| WEA21 | 28.7 KN.M | 203 KN.M | 107 KN.M | 1600 KN | 650 KN | 90:1 | ≤0.1° | 170 KG |
| 21180 LBF.FT | 150*10m³ LBF.FT | 78.9*10m³ LBF.FT | 360*10m³ LBF | 146*10m³ LBF | ||||
| WEA25 | 34.2 KN.M | 310 KN.M | 160 KN.M | 2400 KN | 950 KN | 104:1 | ≤0.1° | 200 KG |
| 25240 LBF.FT | 229*10m³ LBF.FT | 118*10m³ LBF.FT | 540*10m³ LBF | 213.6*10m³ LBF | ||||
| WEA25D | 58 KN.M | 310 KN.M | 247 KN.M | 2360 KN | 945 KN | 108:1 | ≤0.12° | 273 KG |
| 42800 LBF.FT | 229*10m³ LBF.FT | 182*10m³ LBF.FT | 531*10m³ LBF | 212*10m³ LBF | ||||

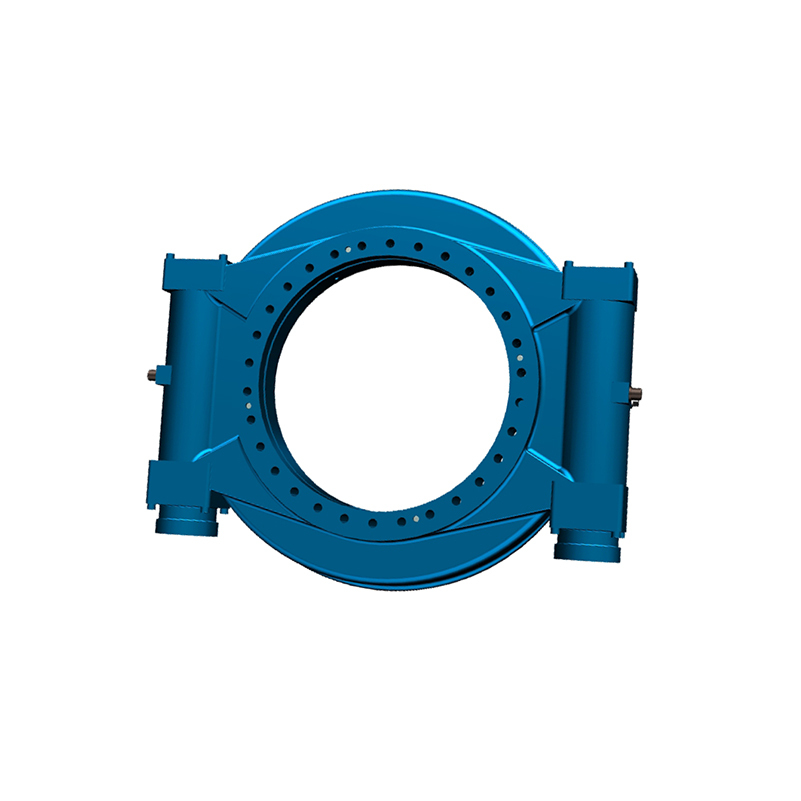

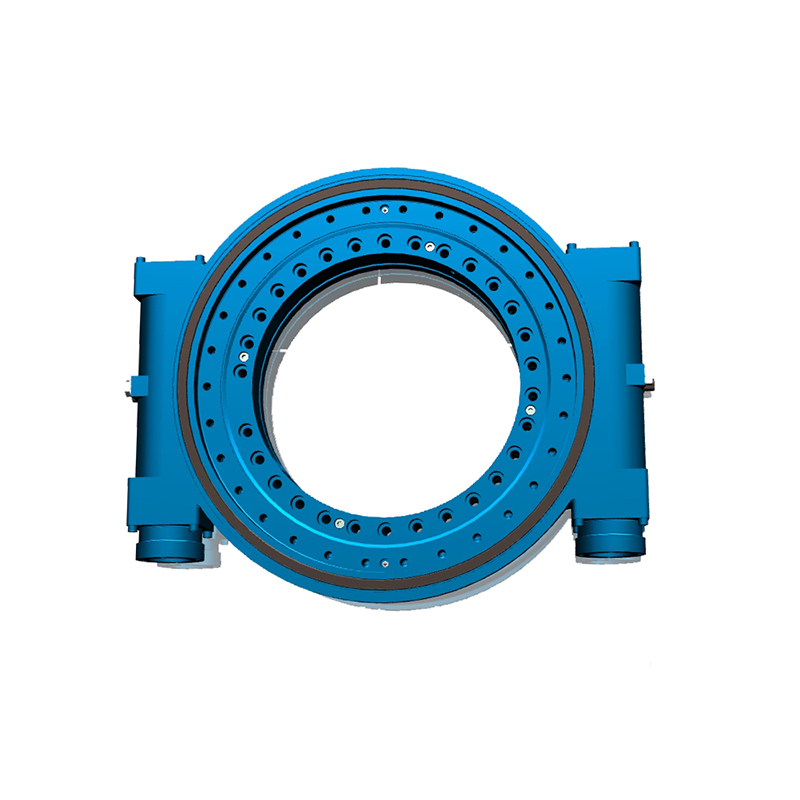

| Slewing Drive Performance Data | |||||||
| Model No. WEA25D | |||||||
| Output Torque | Tilting Moment Torque | Holding Torque | Axial Load | Radial Load | Gear Ratio | Precision | Weight |
| 58 KN.M | 310 KN.M | 247 KN.M | 2360 KN | 945 KN | 108:1 | ≤0.12° | 273 KG |
| 42800 LBF.FT | 229*10m³ LBF.FT | 182*10m³ LBF.FT | 531*10m³ LBF | 212*10m³ LBF | |||
